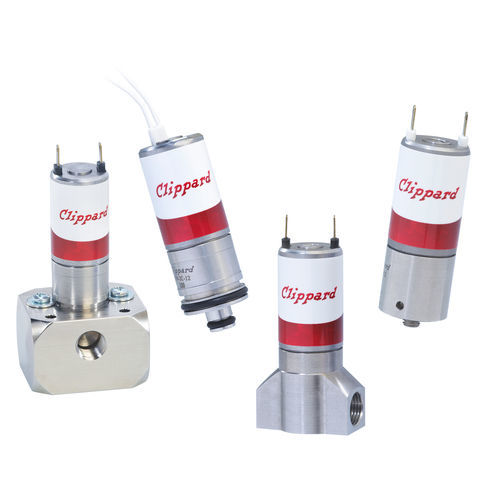

Medical valve DV

solenoidstainless steel

The DV Series electronic valves are precision-built utilizing Clippard's unique, patented valving principle. Designed as the next generation of the well-known and trusted original EV Series, the powerful DV Series is compact, quick and built to last—over 1,000,000,000+ cycles! With a solid, compact design and extremely high flow rates, these valves are well-suited for many applications in a variety of different industries including medical, analytical, packaging, manufacturing and more. High flow rate 2-way and 3-way Industry standard for leak-free operation Over 1,000,000,000+ cycles Fast response time Low heat rise/low power Robust stainless steel "spider" flat armature spring Designed to accommodate large flows with more stroke CE Approved Accessories - Installation Socket Torque Tool 30220 Coil Resistance - 76 Cycle Life - 750 million Data Sheet - Data Sheet Filtration - 40 micron (recommended) Material, Body - Stainless Steel Material, Seals - Nitrile Material, Spring - Stainless Steel Material, Wetted - Polyetherimide, Stainless Steel, PPS Max PSI - 100 (6.9 bar) Medium - Compatible Fluids & Gases Operating Temperature Range - 32 to 130°F (0 to 55°C) at continuous duty Product Line Brochure - Spider Valves Response Time - 20 milliseconds (nominal) Unit - Imperial Voltage - 12 VDC Voltage Operating Range - 95 to 125% of Rated Power Wattage - 1.9 Watts Weight (lbs.) - 0.2000
