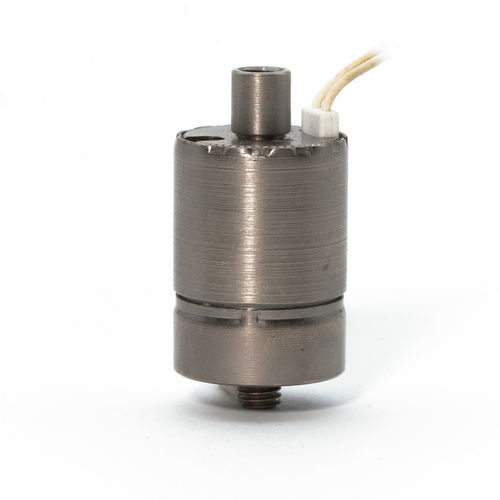

Medical valve M-EMO-3-12-H

When space is critical, the EM Series Valve provides a great solution. At just over an inch tall, and less than 3/4” in diameter, the EM Valve uses Clippard’s special “spider” design. This reliable and proven design for long life is housed in a miniature body, and incorporates wire leads out the top, allowing body rotation for close-center mounting. In addition, the valve features higher flow; combining fast shifting speed, extremely high cycle life with the design flexibility to make this valve a “small wonder” for demanding applications. Unique “Spider” design for extremely long life Small size—high flow Compact manifold spacing (0.740” centers) Low power, quiet operation Filtration - 40 micron Filter Function - 3-Way Fully-Ported Material, Seals - Nitrile Standard. FKM & EPDM Available Max. Flow - 0.45 scfm @ 25 psig (13 l/min @ 1.8 bar) Medium - Clean, Dry Air & Compatible Gases Operating Pressure - 28" Hg Vac. to 25 psig Operating Temperature Range - 32 to 150°F (0 to 66°C) Orifice - 0.060" Port, Exhaust - #10-32 (M5 optional) Product Line Brochure - Spider Valves Response Time - 10 ms (nominal) (15 ms for N.O.) Unit - Metric Voltage - 12 VDC Voltage Operating Range - 90 to 120% of Rated Voltage Wattage - 1 Watt at Rated Voltage Weight (lbs.) - 0.1400
