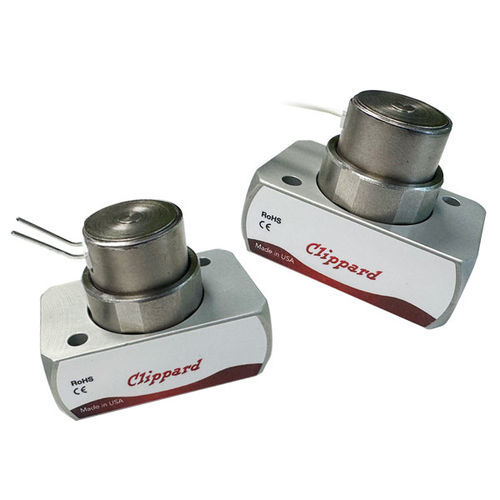

Medical valve EHS

high-pressure

The EHS series is precision-engineered to deliver robust performance in higher pressure (up to 1,000 psig) applications, prioritizing both safe functionality and the reduction of potential leak points. Building upon the foundation set by the ES series, the EHS incorporates key features such as substantial cross sectional o-rings, proven poppet designs, and strategic placement of mounting hardware outside the flow path. The EHS series is the preferred choice for high-pressure applications that demand lasting, low leak performance. Specially engineered for reliability in demanding high-pressure applications Easy installation and maintenance Proven poppet technology Compact, space-saving design with optimized flow path 2D Drawing - 2D File Coil Resistance - 144 (12 VDC), 576 (24 VDC) Current - 0.083A (12V), 0.042A (24V) Data Sheet - Data Sheet Filtration - 40 micron (recommended) Function - 2-Way Normally-Closed (Monodirectional) Material, Body - ENP Steel, Stainless Steel, Aluminum Material, Seals - Nitrile Standard, FKM & EPDM Available Material, Spring - Nickel Alloy Material, Wetted - Nickel Alloy, Stainless Steel, ENP Steel, Aluminum Max. psig - 1,000 psig (69 bar) Medium - Clean, Dry Air & Compatible Gases Mount - Inline Number of Ports - 2 Operating Pressure - Vac. to 1,000 psig (69 bar) Operating Temperature Range - 32 to 150°F (0 to 65°C) Port, Inlet - 1/8-27 NPT Female Port, Outlet - 1/8-27 NPT Female Product Line Brochure - Spider Valves Response Time - 10 to 15 ms (nominal) Seals - Nitrile Unit - Imperial Voltage Operating Range - 90 to 120% Wattage - 1 Watt (nominal) Weight (lbs.) - 0.1700
