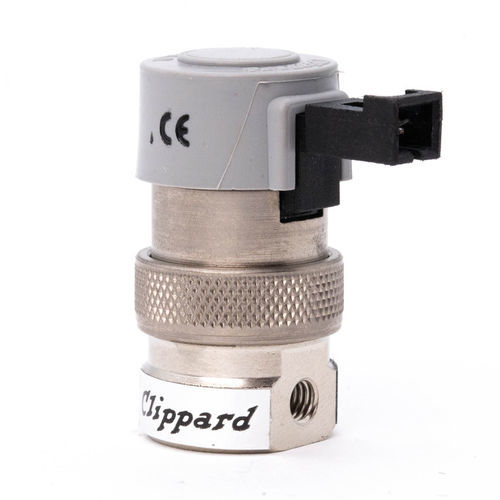

Medical valve CR-EC-2-12

solenoid

2-Way Elec. Valve, N-C, In-Line Mount, Pin Connector, 12 VDC Superior corrosion resistance 1,000,000,000+ cycle life Low vibration & noise 100% tested Low power Fast response time Compact & lighweight Many styles & options available Accessories - Installation Socket Torque Tool 30215 Coil Resistance - 122 Connection - Terminal Pin, 0.025" Connector - C2-RB18 Current - 0.05A Cycle Life - >1,000,000,000 (ideal applications) Data Sheet - Data Sheet Filtration - 40 micron (recommended) Function - 2-Way Normally-Closed Leak Rate - 0.1 sccm Length - 1.56 Material, Seals - Nitrile Material, Spring - ENP Nickel Alloy Material, Wetted - ENP Brass, ENP Nickel Alloy, 430 Stainless Steel Max PSI - 105 psig Max. Flow - 17 l/min @ 100 psig Medium - Clean, Dry Air & Compatible Gases Mount - In-Line Mounting - #6-32 Thread Operating Pressure - 105 psig (17 l/min @ 100 psig) Operating Temperature Range - 32 to 150°F (0 to 65°C) Operating Voltage Range - 90 to 110% Poppet Travel - 0.007" Port Size - #10-32 Female In-Line Product Line Brochure - Spider Valves Response Time - 5 to 10 milliseconds (nominal) Unit - Imperial Voltage - 12 VDC Wattage - 1.2 Watts (nominal) Weight (lbs.) - 0.1700 Wire Connector - AMP #103959-1
