Medical valve PB series

redgreen

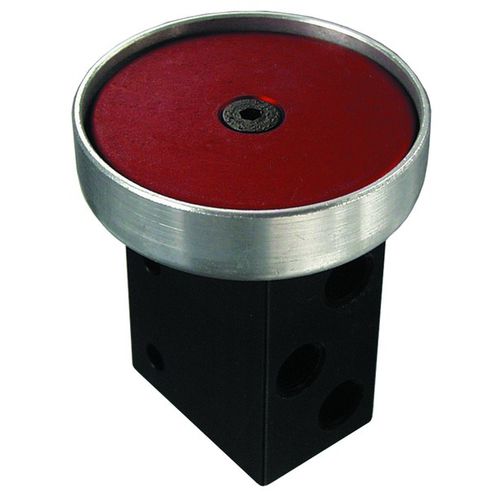

3-Way Palm Button Valve, Black (Red shown) Estimated to ship within 5 business days Air Flow - 170 l/min @ 100 psig; 99 l/min @ 150 psig Input PSI - 100 psig max. Max PSI - 150 psig Medium - Air Mount - Mounting holes provided. Stem Travel - 1/8" Temperature Range - 32 to 230 F Weight (lbs.) - 0.5700 Standard or Low Force 3-Way Normally-Closed poppet valves available in red, green or black. Optional bracket kit provides additional mounting versatility. Button Color - Green Documentation - CA Prop. 65 Flow - 170 l/min @ 100 psig; 99 l/min @ 150 psig Force to Actuate - 1.75 lbs. manual Input PSI - 100 psig max. Max PSI - 150 psig Medium - Air Mount - Mounting holes provided. Notes - The MAV-3C 3-Way Normally-Closed Poppet Valve is the replaceable cartridge valve available with anodized color buttons. Operating Pressure - 100 psig max. Ports - 1/8" NPT Stem Travel - 1/8" Stem Travel - 1/8" Temperature Range - 32 to 230 F Type/Force - Standard Force Weight (lbs.) - 0.5700 3-Way Palm Button Valve, Red Estimated to ship within 1 to 2 business days 3-Way Low Force Actuation Push Button, Black (Green shown) Estimated to ship within 5 business days Standard or Low Force 3-Way Normally-Closed poppet valves available in red, green or black. Optional bracket kit provides additional mounting versatility. 3-Way Low Force Actuation Push Button, Red (Green shown) Estimated to ship within 1 to 2 business days
