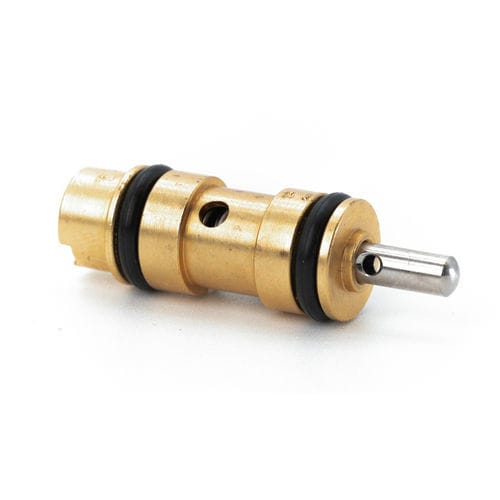

Valve for the medical industry MAV-2
manual

valve for the medical industry
valve for the medical industry
valve for the medical industry
Add to favorites
Compare this product

Characteristics

Applications
for the medical industry
Other characteristics
manual

Description

The MAV series are #10-32 ported 2-way, 3-way and 4-way valves that change their flow path when the stem is either depressed or released. The 2-way and 3-way valves are offered in both Normally-Closed (not passing) or Normally-Open (passing) versions. The 4-way valves are typically used to control a double acting air cylinder. On pages 135 through 145 we offer a wide range of pneumatic and mechanical valve actuators that work with all Clippard stem valves. Medium: Air, Water or Oil Input Pressure: MAV-2, MAV-3: 300 psig max.; MAVO-2, MAVO-3, MAV-4: 150 psig max Stem Travel: MAV-2, MAV-3: 1/8”; MAV-4: 3/16” Force For Full Stem Travel: MAV-2, MAV-3: 24 oz.; MAVO-2, MAVO-3: 32 oz.; MAV-4: 38 oz.; MAV-4D: 12 oz. nominal Mounting: 15/32-32 thread. Nut and lockwashers furnished. Cartridge inserts into a 3/8” bore (0.375” ±0.001”) Materials: Brass body, Nitrile seals, stainless steel stem and spring
