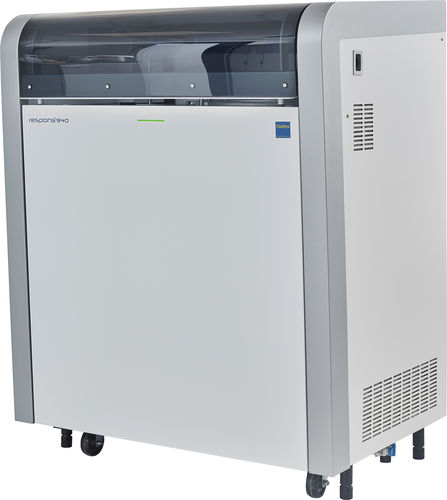

Automatic biochemistry analyzer respons®940

floor-standingrandom accesswith ISE

respons®940 is an automated random access clinical chemistry analyzer and offers a constant throughput of minimum 400 tests/h, independently whether a mono- or two component reagent is used. I Customer-oriented Together with modern software features, pre-programmed applications and carry over evasion lists, respons®940 analyzer delivers high quality results for a broad parameter portfolio. Due to durable quartz cuvettes, low reaction volume and maintenance free photometer, this analyzer offers the economic use and reliability required in small to medium sized labs. Technical specifications Analytical methods - 1-point, 2-point Rate-A, Rate-B, direct potentiometric ISE, Cubic spline, 4P logitlog, 5P logitlog Calibration - Linear (one point, multi point), exponential, polynomial, factor Measuring principle - Colorimetry (rate/end point), Immunoturbidimetry Serum indices - Detection of lipemic, icteric and hemolytic samples STAT analytics - Several flexible positions Quality control - Levy Jennings graphs, Westgard rules and Twin Plot Management for 4 level of controls Utility programs - Carry over evasion, cuvette skipping, different washing programs Photometry - 12 wavelengts: 340, 376, 415, 450, 480, 505, 546, 570, 600, 660, 700 and 750 nm. Wavelenghts separation by diffraction grating, twin-test functionality Photometric linearity and resolution - Linearity: 0-3.0 OD. Resolution: 0.0001 OD Light source - Halogen lamp 12 V/20 Watts LIS connectivity - Yes Water consumption - <13 liters per hour System interface - Analyzer PC: USB 2.0 bi-directional for Pentium IV or higher, PC interface Power source/Power consumption - AC 110V +/-10 %, 60 +/- 1 Hz or 220V +/- 10%, 50
