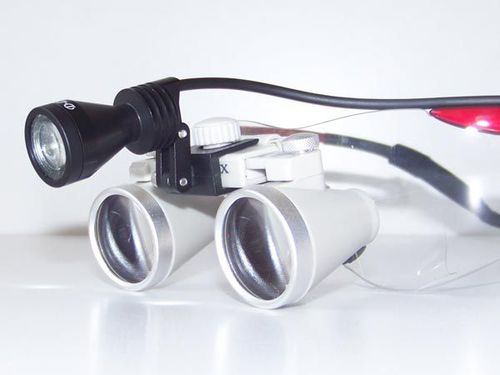

Dental headlight D-Light HD

surgicalLEDwith rechargeable battery

Product overview
ErgonoptiX D-Light HD surgical LED headlamps use an enhanced lens system to deliver a uniform light beam with a clearly defined edge. The D-Light HD is a compact LED headlamp designed for use with medical, surgical and dental loupes to support task illumination and operator comfort.

Key highlights

• Brightness: 100,000 Lux
• Lamp weight: 10 grams / 0.35 oz (lamp part)
• Compact lamp size: 38 x 17 mm / 1.5 in
• High-resolution lens system for a sharp-edged beam and consistent color/brightness across the visual field
• Dedicated cooling system to keep the lamp surface cool during use

Power and battery
Rechargeable power pack provides 10–15 hours of operation on a single charge, depending on intensity. The power pack supplies constant output so brightness remains stable until depletion. LED indicators show Charged, Low, Empty and Charging states. If the power pack is fully discharged, the headlamp can be powered directly from AC 110V or 240V.

Adjustability and usability
Hinged mount system for wide positional adjustability. Multiple brightness levels allow precise control of illumination. Slim aluminium rechargeable power pack with four-step power level indication.

Included items in basic D-Light HD set

• Black carrying case
• Power Pack (XL)
• Frame / Clip-On / Loupes mount (one choice included)
• UV curing filter (for dental use)
• Allen key for adjustments
• Clips and elastics for cable fixation
• Power supply

Features

• Sharp-edge light beam with edge-to-edge consistency
• Easy positional adjustment via hinged mount
• Fully adjustable light intensity
• Slim aluminium rechargeable power pack
• Long runtime: up to 15 hours on a single charge
• Fast charging: full charge in 4–5 hours

Technical table (lamp part / power pack)
D-Light HD lamp part: Weight — 10 g / 0.35 oz
Brightness — 100,000 Lux
Color temperature — 6000 K
LED life time — 6,000 hours
Size (lamp) — 38 x 17 mm / 1.5 in
Length of wire — 125 cm / 50 in
Light field at 20 cm (7.9 in) — 55 cm / 21.5 in
Light field at 30 cm (11.8 in) — 80 cm / 31.5 in
Light field at 40 cm (15.7 in) — 100 cm / 39.4 in
Light field at 50 cm (19.7 in) — 120 cm / 47 in

Power pack (micro-XL): Continuous operation — 10–15 hours
Time to fully charge — 4–5 hours
Power supply — AC 110V/240V
Weight (power pack) — 177 g / 6.2 oz
Size (power pack) — 93 x 44 x 21 mm / 3.6 x 1.5 x 0.5 in
Length of power cable — 125 cm / 50 in

Technical specifications

• Model: D-Light HD (lamp part)
• Lamp weight: 10 g / 0.35 oz
• Lamp size: 38 x 17 mm / 1.5 in
• Brightness: 100,000 Lux
• Color temperature: 6000 K
• LED life time: 6,000 hours
• Wire length (lamp): 125 cm / 50 in
• Light field measured: at 20 cm = 55 cm; at 30 cm = 80 cm; at 40 cm = 100 cm; at 50 cm = 120 cm
• Power pack (XL) continuous operation: 10–15 hours (depending on brightness)
• Power pack weight: 177 g / 6.2 oz
• Power pack size: 93 x 44 x 21 mm
• Power pack charge time: 4–5 hours
• Power supply: AC 110V / 240V
• Fully adjustable brightness and 4-step power level indication
• Cooling system to prevent lamp overheating
