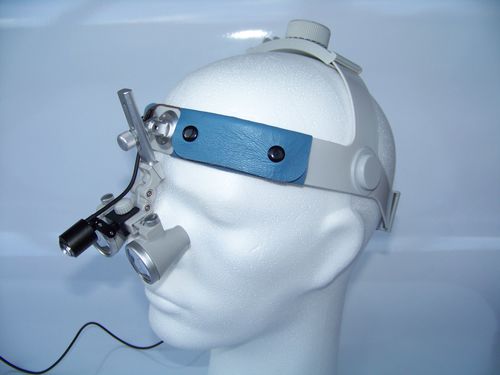

Dental headlight D-Light micro

surgicalLEDwith rechargeable battery

Overview
The ErgonoptiX D-Light micro is a compact LED headlamp designed for medical, surgical and dental procedures. It delivers focused illumination from a mini lamp compatible with loupe mounts, combining a small form factor with high luminous intensity.

Key product claims
- Brightness: 100,000 Lux
- Lamp weight: 5 g
- Lamp size: 21 × 16 mm

Operational features
- Constant power output to maintain consistent brightness until the power pack is depleted.
- Power level indicators: Charged, Low, Empty, Charging.
- When the power pack is fully discharged, the lamp can be powered directly from AC 110V/240V.
- Integrated cooling system to keep the lamp housing safe to touch.

Included in basic D-Light set

• Black carrying case
• Power pack (PP1)
• Mount: frame / clip-on / loupes (one option included)
• UV curing filter (dental use)
• Allen key for adjustments
• Power supply

Additional options & accessories
- Optional extra power pack (PP2).
- Alternative head-strap options for standard frames and anti-slip arms.
- Hard aluminium carrying case or larger metal case options.
- UV filter available as accessory.

Technical table (D-Light micro / Power pack micro)
D-Light micro — Power pack micro
Weight — 5 g / 0.17 oz — Continuous operation — 7–10 hours
Brightness — 100,000 Lux — Time to full charge — 4–5 hours
Color temperature — 6000 K — Power supply — AC 110V/240V
Bulb lifetime — 6,000 hours — Power pack weight — 109 g / 3.8 oz
Lamp size — 21 × 16 mm — Power pack size — 90 × 60 × 14 mm
Length of lamp-to-pack wire — 120 cm — Power cable length — 125 cm
Light field at 20 cm — 55 cm
Light field at 30 cm — 80 cm
Light field at 40 cm — 100 cm
Light field at 50 cm — 120 cm
*Measured at 100 mm
**Depending on selected brightness intensity

Features
- Hinged mount for easy positional adjustment.
- Fully adjustable light intensity.
- Slim aluminium rechargeable power pack.
- Five-step power level indication.

Specifications / Technical data

• Model: D-Light micro
• Brand: ErgonoptiX
• Brightness: 100,000 Lux
• Lamp weight: 5 g (0.17 oz)
• Lamp size: 21 × 16 mm
• Bulb lifetime: 6,000 hours
• Color temperature: 6000 K
• Power pack operation: 7–10 hours (depending on brightness)
• Power pack weight: 109 g (3.8 oz)
• Power pack size: 90 × 60 × 14 mm
• Time to full charge: 4–5 hours
• Power supply: AC 110V / 240V
• Lamp-to-pack cable length: 120 cm
• Power cable length: 125 cm
• Light field examples: 20 cm → 55 cm; 30 cm → 80 cm; 40 cm → 100 cm; 50 cm → 120 cm
• Included in basic set: carrying case, power pack, mount (frame/clip/loupes), UV curing filter (dental), Allen key, power supply
