Dental headlight D-Light Duo

surgicalLEDshadowless

Product overview

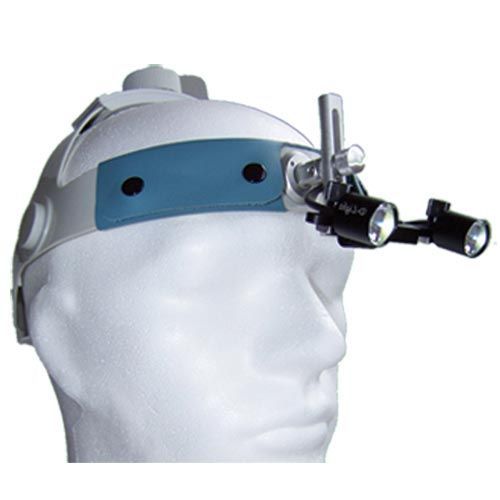

D-Light Duo is a compact, dual-LED shadow-reducing medical headlight designed for line-of-sight illumination in surgical, dental and clinical procedures. The ergonomic hinge allows the two LEDs to work as one, producing a sharp-edged, high-intensity light field while minimizing disturbances to the operator.

Key features

• Shadow reduction: up to 70% reduction via line-of-sight illumination
• High brightness: marketed as 150,000 Lux; measured values up to 200,000 Lux at 100 mm
• Ergonomic hinge mount for precise LED positioning
• Sharp edge light field for accurate illumination of the working area
• Adjustable for multi-user environments
• Flip-Up option: retract the lamp out of view when not required
• Integrated cooling system keeps housing cool to touch

Adjustments / Positioning

• A: Adjustable declination angle — direct light to the target area
• A+: Flip-Up — move the lamp out of the line-of-sight when idle
• B: Adjustable convergence angle — adapt beam overlap for different working distances
• C: Adjustable interpupillary distance (IPD) — align each LED to the user’s ocular axis

Included in basic D-Light set

• Carrying case
• Power pack
• Frame / Clip-On / Loupes connection (one option included)
• UV curing filter (dental use)
• Allen key for adjustments
• Power supply

Technical table (summary)
D-Light Duo - Lamp | D-Light Duo - Power pack
Weight (incl. mount): 25 g / 0.88 oz | Continuous operation: 5–8 hours (depending on brightness setting)
Brightness: up to 200,000 Lux (measured at 100 mm) | Time to fully charge: 5–6 hours
Color temperature: 6000 K | Power supply: AC 110V/240V
Bulb life: approx. 6,000 hours | Power pack weight: 177 g / 6.2 oz
Individual LED size: 21 x 16 mm | Power pack size: 92 x 45 x 21 mm
Total lamp size (incl. mount): 87 x 31 x 18 mm | Wire length: 40–140 cm
Power cable length: 125 cm
Light field diameters: 20 cm → 55 cm; 30 cm → 80 cm; 40 cm → 100 cm; 50 cm → 120 cm

Notes
The two LEDs operate on an ergonomic hinge system to provide near-shadowless, line-of-sight illumination. The compact, lightweight design reduces interference while delivering true-color, high-intensity light for improved visual clarity and operator comfort.

Technical specifications

• Model / Commercial name: D-Light Duo
• Brand: ErgonoptiX
• SKU: DLD-S
• Brightness (quoted/measured): 150,000 Lux (marketing) / up to 200,000 Lux (measured at 100 mm)
• Color temperature: 6000 K
• Bulb life: approx. 6,000 hours
• Lamp weight (incl. mount): 25 g
• Power pack weight: 177 g
• Power pack continuous operation: 5–8 hours (depending on brightness)
• Time to fully charge power pack: 5–6 hours
• Individual LED dimensions: 21 x 16 mm
• Lamp total size (including mount): 87 x 31 x 18 mm
• Power pack size: 92 x 45 x 21 mm
• Wire length: 40–140 cm
• Power cable length: 125 cm
• Light field diameters: 20 cm → 55 cm; 30 cm → 80 cm; 40 cm → 100 cm; 50 cm → 120 cm
• Cooling: integrated cooling system to keep housing cool to touch
• Adjustability: declination angle, convergence angle, interpupillary distance (IPD), flip-up function
