Dental headlight D-Light Duo

surgicalLEDwith rechargeable battery

Overview

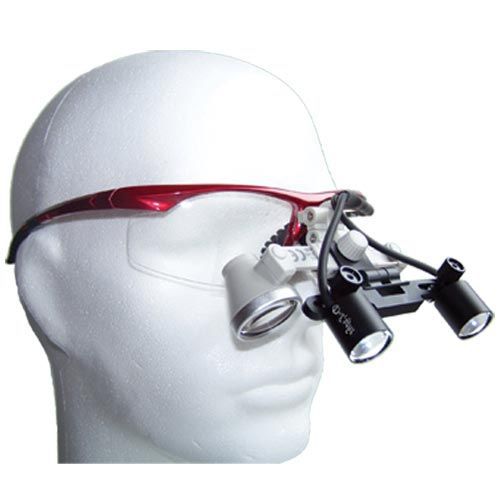

D-Light Duo – the first mini shadowless LED surgical headlamp. Designed for precision surgical procedures, it delivers significant shadow reduction and line-of-sight illumination for clearer, more comfortable working conditions.

Key features

• 70% shadow reduction
• Line-of-sight lighting
• Ultra bright (stated on site: 150K lux; measured: 200,000 Lux at 100 mm)
• Unique hinge mount system
• Sharp edge light
• Easily adjustable — multi-user friendly
• 2 x LEDs working as one on an ergonomic hinge system
• Special cooling system so the lamp part does not get too hot to touch

Adjustability (unique Shadowless headlight system)

• A: Adjustable declination angle — direct the light to your working area
• A+: Flip-Up — flip the lamp out of sight if not needed
• B: Adjustable convergence angle — for working at different distances
• C: Adjustable pupil distance (IPD) — position each ocular exactly above your eyes so the light is in your line-of-sight

Included in basic D-Light set

• Carrying case
• Power Pack
• Frame / Clip-On / Loupes connection (one option included)
• UV curing filter (for dental use)
• Allen key for adjustments
• Power supply

Optional accessories (examples shown on product page)

• Extra XL power pack — +€245.00
• Additional head-strap for standard frames — +€2.50
• Additional head-strap for frames with antislip arms — +€2.50
• Hard aluminum carrying case (replacing standard canvas case) — +€30.00
• Large metal case for light on head-band — +€50.00
• Large metal case for light with loupes — +€50.00
• UV filter for D-Light (set of 2) — +€30.00

Where you look is where the light goes
Designed to provide highly accurate positioning of individual LED lamps along the direct line-of-sight for optimal illumination of the work area.

Technical specifications

• SKU: DLD-L
• Lamp weight (incl. mount): 25 gram / 0.88 oz
• Power pack continuous operation (depending on brightness intensity): 5–8 hours
• Brightness: 200,000 Lux (measured at 100 mm); site also references Ultra bright ~150K lux
• Time to fully charge (power pack): 5–6 hours
• Color temperature: 6000 K
• Power supply: AC 110V/240V
• Bulb lifetime: 6,000 hours
• Power pack weight: 177 gr / 6.2 oz
• Individual LED size: 21 x 16 mm (0.82 x 0.63")
• Power pack size: 92 x 45 x 21 mm (approx. 3.6 x 1.77 x 0.82")
• Total lamp size including mount: 87 x 31 x 18 mm (3.4 x 1.2 x 0.7")
• Length of wire (lamp to pack): 40–140 cm (approx. 1.5–5.5')
• Length of power cable: 125 cm (4.9")
• Light field (diameter) at 20 cm / 7.9": 55 cm / 21.5"
• Light field at 30 cm / 11.8": 80 cm / 31.5"
• Light field at 40 cm / 15.7": 100 cm / 39.4"
• Light field at 50 cm / 19.7": 120 cm / 47"
