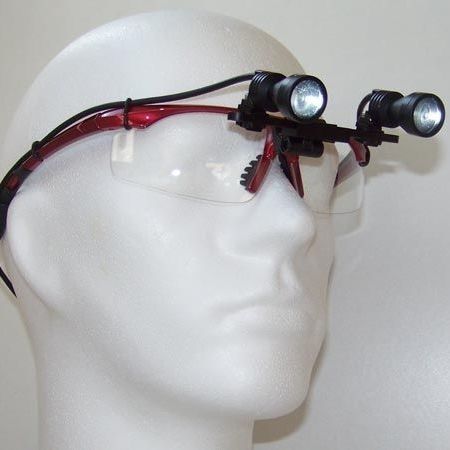

Surgical headlight D-Light Duo-HD

dentalLEDwith rechargeable battery

Product Overview
The D-Light Duo-HD is a compact shadowless medical LED headlight designed to deliver line-of-sight illumination with significant shadow reduction and high measured brightness. It is a lamp-only, stand-alone solution ideal for clinicians who require a lightweight, adjustable light source without using loupes.

Key Features

• Up to 70% shadow reduction
• Line-of-sight illumination aligned to the user
• Ultra bright — 200,000 lux (measured at 100 mm)
• Uniform color temperature and stable brightness
• Sharp-edged light beam for precise field definition
• Unique hinge mount for easy positioning
• Adjustable for multi-user environments
• 2 LEDs combined to produce a single light source
• Active cooling system; lamp remains cool to touch

Adjustable / User Controls

• A: Declination angle — direct the beam to the working area
• A+: Flip-Up — stow the lamp out of the line-of-sight when not required
• B: Convergence angle — adjust beam overlap for different working distances
• C: Interpupillary distance (IPD) — position each ocular above the eyes for precise alignment

Where you look is where the light goes
The D-Light Duo-HD enables precise alignment of the LEDs with the clinician's line-of-sight to ensure optimal illumination of the target area.

Included in the basic D-Light set

• Carrying case
• Power pack
• Frame / Clip-On / Loupes connection (one option included)
• Clips and elastics for cable management
• UV curing filter (dental use)
• Allen key for adjustments
• Power supply

Optional Accessories

• Extra XL power pack
• Additional head-strap for standard frames
• Additional head-strap for frames with antislip arms
• Hard aluminium carrying case (replacement for canvas case)
• Large metal case for light on head-band
• Large metal case for light with loupes
• UV filter for D-Light (set of 2)
• Alternative headband and mounting options

Technical Details

• Lamp (D-Light Duo HD) — Weight (incl. mount): 37 g / 1.3 oz
• Brightness: 200,000 Lux *
• Color temperature: 6000 K
• Individual LED size: 38 x 17 mm
• Lamp size incl. mount: 70 x 38 x 17 mm (2.7 x 1.5 x 1.18")
• Lamp wire length: 40–140 cm (15–55")
• Light field examples: at 20 cm → 55 cm; at 30 cm → 80 cm; at 40 cm → 100 cm; at 50 cm → 120 cm
• Power pack — Continuous operation: 5–8 hours **
• Power pack weight: 177 g / 6.2 oz
• Power pack size: 92 x 45 x 21 mm
• Time to fully charge: 5–6 hours
• Power supply: AC 110V/240V

Summary / Benefits
Compact and lightweight headlamp delivering true-color, high-intensity illumination to improve visual clarity and workflow efficiency. The hinge and adjustment system allow quick reconfiguration for different users and clinical distances.

Technical Specifications

• Model: D-Light Duo HD (lamp part)
• Brightness: 200,000 Lux (measured at 100 mm)
• Color temperature: 6000 K
• Lamp weight (incl. mount): 37 g
• Power pack operation: 5–8 hours (depending on brightness)
• Power pack weight: 177 g
• Bulb lifetime: ~6,000 hours
• Lamp dimensions incl. mount: 70 x 38 x 17 mm
• Power pack dimensions: 92 x 45 x 21 mm
• Charging time: ~5–6 hours
• Power supply: AC 110V/240V

* Measured at 100 mm
** Depending on selected brightness intensity
