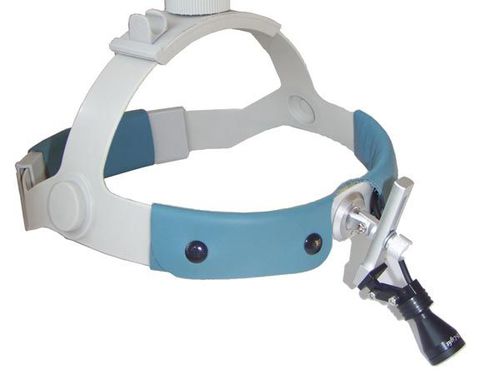

Dental headlight D-Light HD

surgicalsurgeryLED

Product overview
ErgonoptiX D-Light HD surgical LED headlamps utilize an enhanced lens system providing a consistent light beam with a clear sharp edge. Designed for daily professional use, the D-Light HD combines extreme true-color brightness with minimal size and weight for improved work efficiency and personal comfort.

Key performance highlights

• Ultra bright: 100,000 Lux (measured at 100mm)
• Light weight lamp part: only 10 gram / 0.35 oz
• Mini lamp size: 38 x 17 mm (approx. 1.5 inch)
• High resolution lens system giving a sharp-edge light field and consistent color/brightness across the visual field
• Cool running lamp with special cooling system so lamp part remains comfortable to touch

Features

• Sharp edge light beam: edge-to-edge consistency of the light field
• Easy positional adjustment: hinged mount system for precise aiming
• Fully adjustable light intensity (variable brightness)
• Slim aluminum rechargeable power pack (Power Pack micro-XL available)
• Power level indication with 4-step indication: Charged / Low power / Empty / Charging
• Long lasting power: up to 10-15 hours of work on one charge (depending on brightness)
• Fast charging: 4-5 hours to full charge
• Constant power output: brightness remains consistent until pack is depleted
• AC operation: can be run directly from AC 110V/240V if power pack is fully discharged

Technical details (lamp part & power pack)
Lamp part - Weight: 10 gram / 0.35 oz
Brightness: 100,000 Lux*
Color temperature: 6000 K
Bulb life time: 6,000 hours
Size (lamp): 38 x 17 mm (approx. 1.5 inch)
Length of wire: 125 cm / 50"
Light field at 20 cm / 7.9": 55 cm / 21.5"
Light field at 30 cm / 11.8": 80 cm / 31.5"
Light field at 40 cm / 15.7": 100 cm / 39.4"
Light field at 50 cm / 19.7": 120 cm / 47"

Power pack (micro-XL) - Continuous power: 10-15 hours**
Time to fully charge: 4-5 Hours
Power supply: AC 110V/240V
Weight (power pack): 177 gr / 6.2 oz
Size (power pack): 93 x 44 x 21 mm / 3.6 x 1.5 x 0.5"
Length of power cable: 125 cm / 50"

Included in basic D-Light HD set

• Black carrying case
• Power Pack (XL)
• Frame / Clip-On / Loupes mount (one choice included)
• UV curing filter (for dental use)
• Allen key for adjustments
• Clips and elastics for fastening wires
• Power supply

Notes

• Product sold as lamp-only when ordered as 'Stand-alone' version (no loupes included).
• Optional accessories and frame/headband choices are available (one mount choice included in basic set).

Technical specifications

• Brand: ErgonoptiX
• Model: D-Light HD
• SKU: DLHD-S
• Lamp weight: 10 gram / 0.35 oz
• Lamp size: 38 x 17 mm
• Brightness: 100,000 Lux (measured at 100 mm)
• Color temperature: 6000 K
• Bulb lifetime: 6,000 hours
• Power pack continuous runtime: 10-15 hours (depending on intensity)
• Power pack weight: 177 gr / 6.2 oz
• Power pack size: 93 x 44 x 21 mm
• Charge time: 4-5 hours
• Power supply: AC 110V / 240V
• Wire / cable length: 125 cm / 50"
• Light field (examples): at 20 cm → 55 cm; at 30 cm → 80 cm; at 40 cm → 100 cm; at 50 cm → 120 cm
