Fixed patient transfer unit FG-F-01

mobile

Product overview

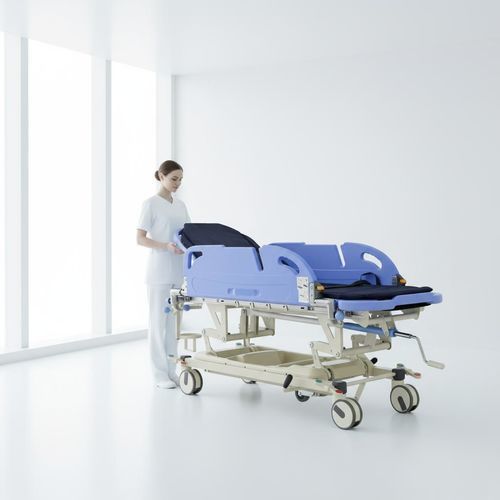

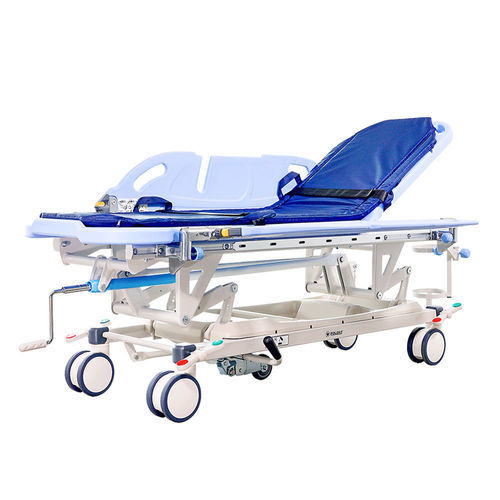

The FG-F-01 patient transfer bed is a transport trolley designed for horizontal transfer and inter-department patient transport in clinical environments. The frame combines thickened cold-rolled steel and aluminum alloy. Key equipment: pneumatic backrest adjustment, hand‑crank height adjustment, central one‑foot four‑wheel brake, fifth‑wheel straight‑line control and a modular lifting structure.

Core advantages

• Frame: thickened cold‑rolled steel plate + aluminum alloy for structural stability
• Bed surface & guardrails: imported one‑piece PP molding, ventilated and anti‑slip
• Backrest adjustment: pneumatic control, 0–70° with angle indication
• Guardrails: 300 mm PP guardrails with double safety locks; support horizontal patient transfer
• Height adjustment: hand crank lifting, range 510–850 mm
• Brake system: central one‑foot four‑wheel brake for reliable parking
• Casters: 150 mm swivel & fixed casters for manoeuvrability and ease of use
• Fifth‑wheel system: central straight‑running control to improve directional stability
• Under‑bed tray: two‑stage design with 6 drain holes, load capacity 10 kg
• Accessories: fixed IV stand and oxygen cylinder holder (max 7 L)
• Mattress: waterproof, anti‑static, three‑section with zipper removable cover
• Modular lifting structure and precision stamping ensure tight connections without deformation

Dimensions
Overall size: 1930 × 667 × (510–850) mm
Bed plate: 1930 × 645 mm

Application scenarios
Designed for hospital operating rooms, emergency departments, wards, ICU and diagnostic departments for horizontal transfer, patient lifting and inter‑department transport.

Selling point
Safe and stable transport solution with pneumatic backrest, hand‑crank height adjustment, central brake and fifth‑wheel straight‑line control to meet clinical transfer requirements.

Technical specifications

• Model: FG-F-01
• Frame material: thickened cold‑rolled steel plate + aluminum alloy
• Bed surface & guardrails material: imported PP one‑piece molding
• Backrest adjustment: pneumatic control, 0–70° with angle indication
• Guardrail height: 300 mm with double safety locks
• Height adjustment range: 510–850 mm (hand crank)
• Brake: central one‑foot four‑wheel brake
• Casters: 150 mm swivel & fixed
• Fifth‑wheel system: central straight‑running control
• Under‑bed tray: two‑stage, 6 drain holes, max load 10 kg
• Accessories: fixed IV stand and oxygen cylinder holder (max 7 L)
• Mattress: waterproof, anti‑static, three‑section with zipper removable cover
• Overall size: 1930 × 667 × (510–850) mm
• Bed plate size: 1930 × 645 mm
