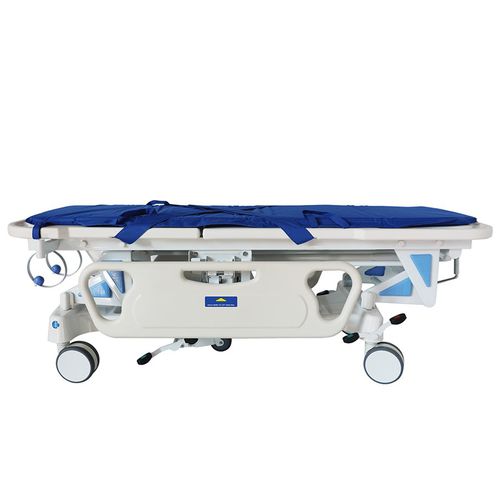

Emergency stretcher FG-F-04

transportintensive careexamination

Seeking global distributors. OEM & ODM services available.

Product
FG-F-04 transport stretcher designed for clinical patient transfer, bedside care and intra-hospital transport. Constructed with a high-strength steel frame and blow-molded PP bed surface with medical-grade accessories.

Model & Size
Model Number: FG-F-04
Overall size: 1900 × 640 × 540/840 mm (adjustable height)

Core Advantages

• High-strength steel frame with one- or two-piece blow-molded PP bed surface
• Silent gas-spring backrest adjustment and screw-driven height lifting with bidirectional protection
• Central foot-operated brake, shock-absorbing fifth wheel and fully specified medical accessories

Product Performance

• Frame: rectangular steel tube ≥30×50×1.5 mm
• Bed surface: two-piece blow-molded PP, wall thickness ≥3.5 mm, corrosion-resistant and easy to clean
• Backrest: silent gas spring, adjustable 0–75°, 304 stainless steel handle
• Height adjustment: single-crank screw system, lift range 0–300 mm, no long-term sinkage
• Guardrails: hidden PP guardrails, height 300 mm, anti-fall design
• Brake: central control one-foot four-wheel brake for stable fixation
• Casters: ≥150 mm silent medical casters, fully enclosed bearings, waterproof, anti-winding, single-wheel load ≥120 kg
• Fifth wheel: shock-absorbing with compression spring for stable straight running
• Mattress: standard 3 cm waterproof sponge, removable and easy to clean
• Includes detachable patient restraint strap, oxygen cylinder base and stainless-steel double-tube IV stand
• Metal IV sockets at head and foot with ABS inner core; ABS injection-molded bottom cover
• Load capacity: 250 kg; Net weight: ≥80 kg

Dimensions

• Overall size: 1900 × 640 × (540–840) mm
• Guardrail size: 300 mm (height) × 1070 mm (length)

Application Scenarios
Suitable for emergency departments, operating rooms, wards, ICUs and examination units for patient transfer, lifting, positioning and clinical bedside care.

Selling Point
Reinforced steel frame with screw height lift and silent gas-spring backrest; central brake and shock-absorbing fifth wheel configured for clinical transfer workflows.

Technical Specifications

• Model Number: FG-F-04
• Overall size: 1900 × 640 × 540/840 mm
• Frame material: rectangular steel tube, ≥30×50×1.5 mm
• Bed surface material: two-piece blow-molded PP, wall thickness ≥3.5 mm
• Backrest: gas spring 0–75°, 304 stainless steel handle
• Height adjustment: single-crank screw, 0–300 mm, bidirectional protection
• Guardrails: 300 mm height, hidden PP design, length 1070 mm
• Brake: central control one-foot four-wheel brake
• Casters: ≥150 mm medical casters, fully enclosed bearings, waterproof, anti-winding, single-wheel load ≥120 kg
• Fifth wheel: shock-absorbing with compression spring
• Mattress: 3 cm waterproof sponge
• Load capacity: 250 kg
• Net weight: ≥80 kg
• Accessories: detachable patient restraint strap; oxygen cylinder base; stainless-steel double-tube IV stand; metal IV sockets with ABS core
• Bottom cover: ABS injection molded
