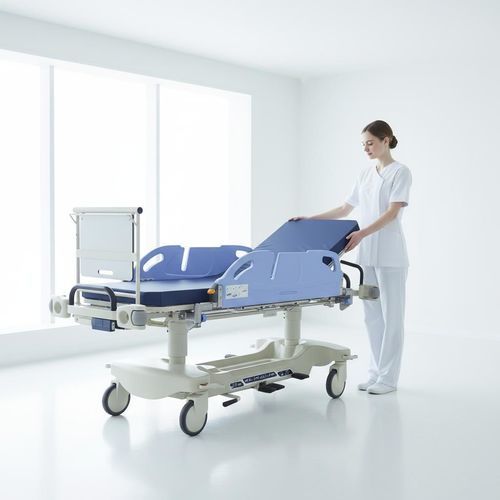

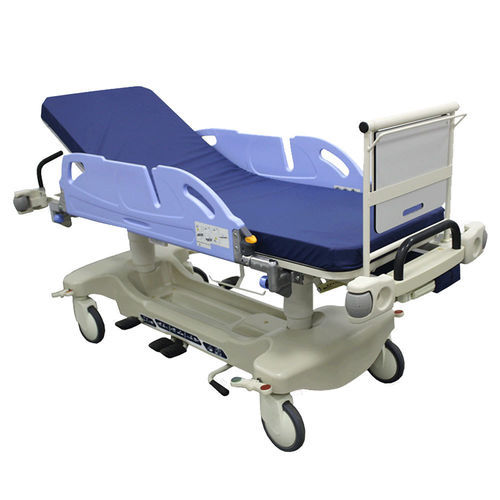

Intensive care stretcher trolley FG-F-03

emergencyfor surgery unitspatient transfer

Product Name
Medical Stretcher Cart FG-F-03

Model Number
FG-F-03

Size
1880 × 620 × (560–890) mm

Core Advantages

• Thickened cold-rolled steel frame for structural stability
• Imported hydraulic pump for smooth foot-controlled height adjustment
• Silent gas-spring backrest with 0–75° positioning
• Central control one-step four-wheel brake for secure immobilization
• Central fifth-wheel system for straight-line tracking and directional stability
• Anti-collision rubber corner wheels and integrated bumpers for safe transfers

Product Performance

• Frame: thickened cold-rolled steel plate, durable and stable
• Bed surface & guardrails: imported one-piece PP molding for hygiene and durability
• Bed board: compact laminate material, high strength and low deformation
• Backrest: silent gas spring, adjustable 0–75°
• Height adjustment: imported hydraulic pump, foot-operated, range 560–890 mm
• Guardrails: 300 mm PP guardrails with double safety locks; angle indicator and catheter groove; aluminum die-cast brackets
• Foldable writing board at foot end for documentation
• Four rubber anti-collision corner wheels and 200 mm universal & fixed casters for maneuverability
• Integrated central brake rod for increased strength
• Under-bed integrated tray, load capacity 10 kg (suitable for oxygen cylinder)
• IV stand storage holder included
• Mattress: waterproof cover with zipper, washable

Dimensions
Overall size: 1880 × 620 × (560–890) mm

Application Scenarios
Designed for patient transfer, lifting and inter-department transport in operating rooms, emergency departments, wards, ICU and diagnostic departments.

Selling Point
Stable frame, smooth hydraulic foot-lift, central braking and anti-collision protection provide reliable clinical transfer performance.

Specifications / Technical Data

• Model: FG-F-03
• Overall size: 1880 × 620 × (560–890) mm
• Frame material: thickened cold-rolled steel plate
• Bed surface & guardrails material: imported PP one-piece molding
• Bed board material: compact laminate
• Backrest adjustment: silent gas spring, 0–75°
• Height adjustment: imported hydraulic pump, foot-controlled, 560–890 mm
• Guardrail height: 300 mm with double safety locks and catheter groove
• Wheels: four rubber anti-collision corner wheels; 200 mm universal & fixed casters
• Brake: central control one-step four-wheel locking; integrated central brake rod
• Fifth-wheel: central fifth-wheel system for straight running
• Under-bed tray capacity: 10 kg (can hold oxygen cylinder)
• Accessories: IV stand holder, foldable writing board, washable mattress
