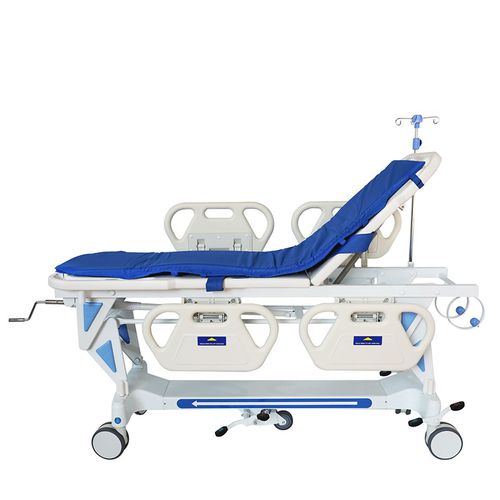

Emergency stretcher trolley FG-F-05

patient transferfor intensive carefor surgery units

Seeking global distributors. OEM & ODM services available.

Product Overview
FG-F-05 Patient Transport Cart designed for hospital patient transfer and clinical care. Built with a reinforced steel frame and two-piece PP bed surface (wall thickness ≥3.5 mm). Equipped with a silent gas-spring backrest (0–75°), single-crank screw height adjustment (0–325 mm) with bidirectional protection, central one-foot four-wheel brake and a shock-absorbing fifth wheel with compression spring for stable straight travel.

Key Features

• Frame: high-quality rectangular steel tube (≥30×50×1.5 mm)
• Bed surface: two-piece PP engineering plastic, high strength, corrosion-resistant and easy to clean
• Backrest: silent gas spring system, adjustable 0–75°
• Height adjustment: single-crank screw system with bidirectional protection, lifting range 0–325 mm
• Guardrails: four-piece retractable PP guardrails for fall protection
• Brake: central control one-foot four-wheel brake, stable and reliable
• Casters: ≥150 mm silent medical casters, fully enclosed bearings, waterproof and anti-winding; single wheel load ≥120 kg
• Fifth wheel: shock-absorbing with compression spring for stable straight travel
• Mattress: standard 30 mm waterproof sponge mattress, washable
• Accessories: detachable patient restraint strap, oxygen cylinder base, stainless steel IV stand, metal IV sockets, drainage bag hooks
• Bottom cover: ABS injection molded

Dimensions

• Overall size: 1930 × 640 × (510–835) mm
• Listed size: 1930 × 640 × 510/835 mm

Performance & Capacity

• Load capacity: 250 kg
• Net weight: 80 kg

Application Scenarios Suitable for hospital emergency departments, operating rooms, wards, ICUs and examination departments for patient transfer, lifting and clinical nursing.

Selling Point Reinforced steel structure, stable lifting, quiet operation and comprehensive safety functions; fully meets clinical high-standard transfer requirements.

Specifications / Technical Data

• Model Number: FG-F-05
• Frame material: rectangular steel tube ≥30×50×1.5 mm
• Bed surface material: two-piece PP engineering plastic, wall thickness ≥3.5 mm
• Backrest adjustment: silent gas spring, 0–75°
• Height adjustment: single-crank screw system, lifting range 0–325 mm, bidirectional protection
• Guardrails: four-piece hidden PP
• Brake system: central control one-foot four-wheel brake
• Casters: ≥150 mm silent medical casters, single wheel load ≥120 kg
• Fifth wheel: shock-absorbing with compression spring
• Mattress: 30 mm thick waterproof sponge
• Accessories: detachable patient restraint strap, oxygen cylinder base, stainless steel IV stand, metal IV sockets, drainage bag hooks
• Bottom cover: ABS injection molded
• Load capacity: 250 kg
• Net weight: 80 kg
• Overall dimensions: 1930 × 640 × (510–835) mm
