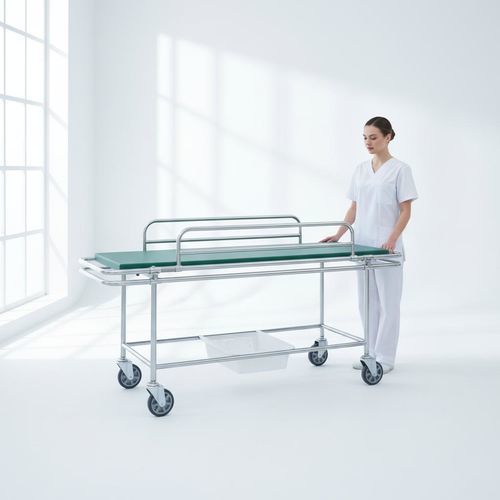

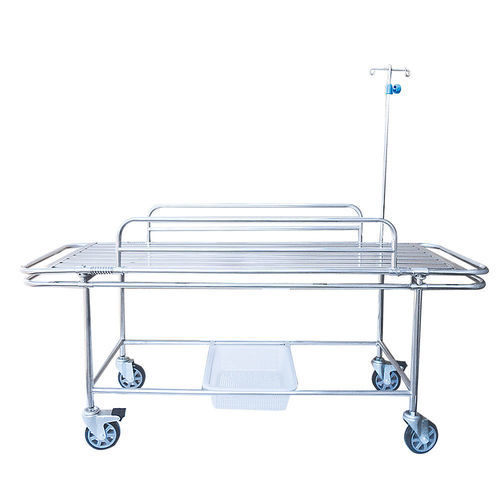

Transfer trolley B02
transferstainless steelwith IV pole

Transfer trolley - B02 - Fangge Medical - transfer / stainless steel / with IV pole
Transfer trolley - B02 - Fangge Medical - transfer / stainless steel / with IV pole
Transfer trolley - B02 - Fangge Medical - transfer / stainless steel / with IV pole - image - 2
Transfer trolley - B02 - Fangge Medical - transfer / stainless steel / with IV pole - image - 3
Transfer trolley - B02 - Fangge Medical - transfer / stainless steel / with IV pole - image - 4
Transfer trolley - B02 - Fangge Medical - transfer / stainless steel / with IV pole - image - 5
Add to favorites
Compare this product
Go to the Fangge Medical website for more information

Characteristics

Applications
transfer
Function
transfer
Material
stainless steel
Components
with IV pole, with basket
Configuration
mobile
Other characteristics
height-adjustable

Description

Overview
  • Available models: B01, B02, FG-F-01, FG-F-02, FG-F-03, FG-F-04, FG-F-05, FG-F-06, FG-F-07, FG-G-01


Product summary — B02
  • Model: B02
  • Overall dimensions: 1950 x 650 x 800 mm


Main features
  • Frame and components in stainless steel tubing and sheet; sheet thickness ≥ 1.0 mm.
  • Four 150 mm reinforced swivel castors designed for intra-hospital patient transfer.
  • Bedding surface formed from folded stainless steel sheet with smooth, ventilated finish.
  • Side rails with stainless steel return springs for corrosion resistance and durable elasticity.
  • Balanced lift mechanism to facilitate manual raising and lowering of the bed section.
  • Corner fixings formed from 8 mm stainless steel rods to reinforce joints and allow secure fastening in all directions.
  • Diagonal IV-pole sockets on the bed surface to allow IV access during patient movement.
  • Height-adjustable stainless steel IV pole with ABS fixation system.
  • Storage basket under the chassis for medical supplies and personal items.
  • 3 cm high-density waterproof foam mattress for comfort and liquid resistance.
  • Custom configurations and options available on request.


Technical specifications
  • Brand: Shandong FANGGE Medical Equipment Co., Ltd.
  • Product category: Transfer trolley (series)
  • Model: B02
  • Overall dimensions: 1950 x 650 x 800 mm
  • Main materials: stainless steel tubing and stainless steel sheet
  • Sheet thickness: ≥ 1.0 mm
  • Castors: 150 mm reinforced swivel (4)
  • Side rails: stainless steel return springs
  • Fixings: 8 mm formed stainless steel rods
  • Mattress: 3 cm high-density waterproof foam
  • Accessories: IV-pole sockets, height-adjustable stainless steel IV pole with ABS fixation, storage basket
  • Customization: available on request
