Emergency stretcher trolley FG-F-06

patient transfermedical imagingfor intensive care

Seeking global distributors. OEM & ODM services available.

Product Overview

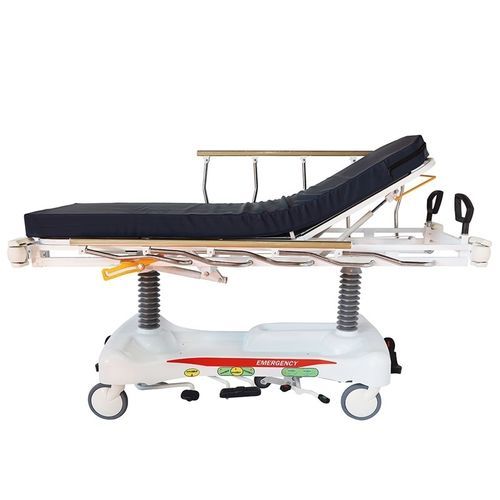

FG-F-06 hydraulic emergency stretcher trolley features multi-position adjustment, X-ray translucent bed board, dual imported hydraulic pumps, central control brake, and shock-absorbing fifth wheel. It is designed for emergency rescue and critical patient transfer.

Core Advantages

• Multi-position adjustment with full hydraulic control
• X-ray translucent bed board made of 8mm anti-magnification material for high strength and no deformation
• Dual imported independent hydraulic pumps for height adjustment (690–990mm)
• Central control brake system (front & rear) for enhanced safety
• Shock-absorbing fifth wheel design for stable straight running
• S-type integrated stainless steel guardrails to prevent falls
• Foldable P-shaped handrails for ergonomic handling
• Four-corner integrated anti-collision wheels to reduce impact
• ABS bottom cover with groove for 10kg load storage
• Four-corner IV stand sockets with ABS inner cores; supplied with IV stand and hooks
• Mattress: 60mm high-elastic sponge with waterproof PU leather, easy to clean
• Maximum load capacity: 250 KG

Product Performance (Key Features)

• Frame: High-quality cold-rolled bright steel providing high rigidity and toughness
• Bed board: 8mm thick X-ray translucent anti-magnification material, high strength, no deformation
• Back adjustment: 0–75° using high-quality silent gas springs
• Leg adjustment: 0–45° operated via ABS handle at bed end
• Height adjustment: 690–990mm via dual independent imported hydraulic pumps
• Overall tilt: Forward 0–15°; Backward 0–15°
• Casters: 200mm dustproof casters
• Fifth wheel: shock-absorbing for stable straight-line motion

Dimensions

• Overall size: 2100 × 830 × (690–990) mm
• Bed surface size: 1930 × 620 × (655–935) mm

Application Scenarios
Suitable for hospital emergency departments, operating rooms, ICUs, radiology departments and critical care areas for emergency rescue, patient transfer and X-ray examination.

Selling Point
Full hydraulic adjustment, X-ray compatible bed board, dual safety brake system, strong load capacity; ideal for emergency and critical care scenarios.

Technical specifications

• Model Number: FG-F-06
• Overall size: 2100 × 830 × (690–990) mm
• Bed surface size: 1930 × 620 × (655–935) mm
• Max load: 250 KG
• Frame material: Cold-rolled bright steel
• Bed board material: 8mm X-ray translucent anti-magnification material
• Back adjustment: 0–75° (silent gas springs)
• Leg adjustment: 0–45° (ABS handle)
• Height adjustment range: 690–990 mm (dual imported hydraulic pumps)
• Overall tilt: Forward 0–15° / Backward 0–15°
• Braking: Central control brake system (front & rear)
• Casters: 200mm dustproof casters
• Fifth wheel: Shock-absorbing design
• Guardrails: S-type stainless steel integrated
• Handrails: Foldable P-shaped
• Storage: ABS bottom cover with groove (10 kg)
• IV stand: Four-corner sockets with ABS inner cores; includes IV stand and hooks
• Mattress: 60mm high-elastic sponge with waterproof PU leather
