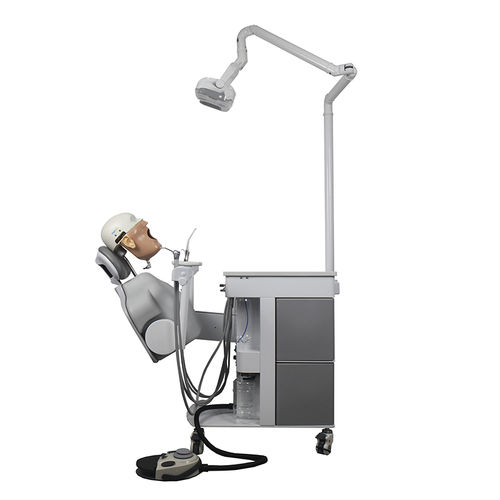

Teaching simulator JG A15-2for demonstrationtrainingdental
Add to favorites
Compare this product
Characteristics
- Procedure
- training, for teaching, for demonstration
- Application
- dental
- Form
- head
- Configuration
- workstation, mobile
- Technology
- computerized
- Options
- with video recording, with electronic console
- Other characteristics
- flexible, custom-made
Description
Overview
Key features
Standard components / Packing list
Q & A
Technical specifications
- Clinical-grade dental surgery patient simulator designed for realistic operative training. Gross weight approx. 150 kg. Main modules include a simulation (phantom) head, integrated lighting, stainless steel workbench and dentist stool.
Key features
- Foldable phantom head for vertical storage; phantom and equipment move synchronously to facilitate student practice.
- Two programmable memory positions for rapid setup; control panel includes tachometer for handpiece RPM and a one-button reset.
- Integrated water system: 1 × clean water bottle (800 ml) and 1 × waste water bottle (1000 ml); option for central/built-in water connection on request.
- Storage: two drawer sets integrated for personal items and materials.
- Accessory support: LED curing light, scaler, electric micromotor, intraoral camera, HD display and recording lamp can be fitted.
- Customization/OEM/ODM: external appearance, dimensions and operation layout can be adapted for universities, clinics and training centers.
Standard components / Packing list
- Stainless steel workbench L120 × W60 × H80 cm — Qty: 1
- 3-way syringe — Qty: 2
- Mobile electrical simulation unit — Qty: 1
- Clean water bottle 800 ml — Qty: 1
- Waste water bottle 1000 ml — Qty: 1
- Phantom head — Qty: 1
- Standard typodont (28 teeth) — Qty: 1 set
- Head rest — Qty: 1
- Simulated backrest — Qty: 1
- Dentist stool — Qty: 1
- Drawer — Qty: 2
- Handpiece tube — Qty: 2
- Suction tip — Qty: 1
- LED oral lamp — Qty: 1
Q & A
- Q: Can the table dimensions be changed? A: Yes — size, color, material and design can be customized per user request.
- Q: Can the assistant side be removed? A: Yes.
- Q: Can a micromotor be added? A: Yes — customer-supplied or supplier-provided options available.
- Q: Can the external appearance be modified? A: Yes — customization services available.
- Q: Can a larger tray be used? A: Yes.
- Q: How to size the air compressor? A: One simulator requires ~35 L/min; multiply by quantity to obtain total required airflow.
- Q: What is needed for installation? A: Power and compressed air are required; central water supply and waste collection can be accommodated if preferred.
Technical specifications
- Model / Part number: JG A15-2 (No. JG-A15-2)
- Gross weight: approx. 150 kg
- Workbench: stainless steel L120 × W60 × H80 cm (standard)
- Water system: clean water bottle 800 ml ×1, waste water bottle 1000 ml ×1; option for central/built-in water
- Controls: tachometer for handpiece RPM, two memory positions, one-button reset
- Storage: two integrated drawer sets
- Standard supplies: phantom head, head rest, simulated backrest, dentist stool, typodont (28 teeth), suction tip, 3-way syringe, handpiece tubes
- Optional accessories: LED curing light, scaler, electric micromotor, intraoral camera, HD display, recording lamp
- Air requirement: ~35 L/min per simulator (for compressor sizing)
- Mounting/portability: foldable phantom head; mobile electrical simulation configuration available
- Customization: OEM/ODM available for appearance, dimensions and operation layout
