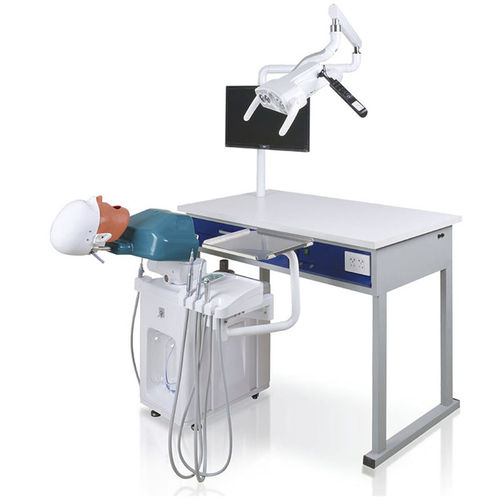

Dental care training manikin JG-A3

dentaldental training video displayfor demonstration

Overview
The DL-SIM1 dental simulation workstation is an electric dental simulator designed for university teaching and clinical skills training. It integrates a phantom head, built-in imaging, ergonomic workstation furniture and standard dental handpieces to reproduce realistic clinical workflows for student practice and research.

Standard components

• Workbench (1200 × 600 × 800 mm) ×1
• Electrical movable part ×1
• Dental phantom head ×1
• Dental typodont ×1
• High-speed handpiece ×1
• Low-speed handpiece ×1
• 3-way syringe ×2
• LED recording lamp with integrated camera ×1
• 21.5" monitor ×1
• Dentist stool ×1
• Foot control ×1
• Clean water bottle ×1
• Waste water bottle ×1
• Weak suction unit ×1

Options

• Stainless steel tray
• 100 mm accessory/option

Recording lamp system
LED recording lamp with integrated camera for video capture, still images and screenshots. HDMI output enables sharing to a larger display for live demonstrations and group review.

Uses and benefits
Provides a controlled environment for practical training, skill assessment and research. Enables repeated practice of procedures without patient risk, supports classroom observation and remote review, and can be customized to fit institutional workflows and installations.

Q & A

• Q: Can I change the dimension of the table? A: Yes — size, color, material and design of the table can be customized on request.
• Q: Can I remove the assistant part? A: Yes, the assistant section can be omitted.
• Q: Can I change the outside appearance of the model? A: Yes, visual customization is available.
• Q: Can I use a bigger tray? A: Yes, tray size can be changed.
• Q: How to choose an air compressor? A: One simulator requires ~35 L/min air flow; multiply by number of units for total capacity.
• Q: What is needed for installation? A: Primarily power and compressed air; central water and waste connections are optional.

Technical specifications

• Workstation size (standard): 1200 × 600 × 800 mm
• Integrated monitoring: 21.5" monitor (standard)
• Imaging: LED lamp with built-in camera, HDMI output
• Handpieces: high-speed and low-speed included
• Syringes: 3-way syringes ×2
• Suction: weak suction unit included; central suction optional
• Water: clean and waste water bottles included; central water optional
• Air requirement: ~35 L/min per simulator (for compressor selection)
• Typical accessories: dentist stool, foot control, typodont, phantom head
