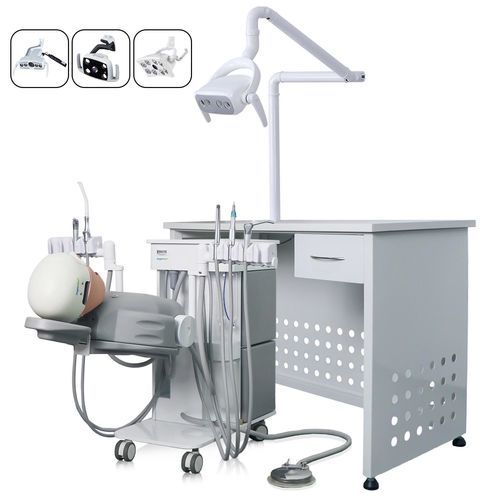

Teaching simulator GL-P1018

dental training video displayfor demonstrationtraining

Overview
The GL-P1018 simulation unit is designed for modern dental training. With a pneumatic movable part, phantom head, typodont, doctor and assistant instrument holders, suction system, LED lamp and compact footprint, it supports student practice, instructor demonstration and clinical skills assessment.

Key features

• Pneumatic movable part for realistic positioning and ergonomics
• Phantom head and typodont accurately reproduce oral anatomy
• Doctor instrument holder: high-speed handpiece, low-speed handpiece and 3-way syringe (customizable)
• Assistant instrument holder: weak suction and 3-way syringe (customizable)
• Instrument holder interchangeable left/right; vertical follow of torso; 180° rotation (CW/CCW)
• Built-in suction system (weak suction included)
• LED lamp (optional/customizable)
• Foot pedal to operate dental handpieces
• Stainless steel tray (standard size; customizable)

Recording system

• Recording lamp: 8.8 million pixels
• Optical magnification: 40×
• Aperture: F2.0–F3.8
• Display resolution: 4K (2160P/29.97, 2160P/25); FHD (1080P/59.94, 1080P/50)
• ISO modes: High sensitivity and Normal sensitivity
• Focusing: auto focus, one-click focus, manual focus; cross-type focus for precision

Software (requires computer)

• Functions: brightness adjustment, lens adjustment, focus, recording, screenshot, playback (video and audio)
• Controls: recording, mirroring, screenshots, video and audio playback

Standard components

• Pneumatic movable part ×1
• Dental phantom head ×1
• Dental typodont ×1
• High-speed handpiece tubing ×1
• Low-speed handpiece tubing ×1
• 3-way syringe ×2
• LED lamp ×1 (optional/customizable)
• Recording lamp (optional)
• Dentist stool ×1
• Foot control ×1
• Clean water bottle ×1 (optional)
• Waste water bottle ×1 (optional)
• Weak suction ×1

Notes
The unit integrates tactile simulation, clinical instrumentation and audiovisual capture to facilitate hands-on training, instructor demonstrations and objective assessment.

Specifications

• Model / commercial name: GL-P1018
• Movement: Pneumatic
• Min height: 370 mm
• Max height: 850 mm
• Angle of torso: -5° to 90°
• Angle of head model: -10°
• Rotation angle of head model: 180°
• Rotation angle of instrument holder: 180° (Counterclockwise/Clockwise)
• Instrument holder (doctor): high-speed handpiece, low-speed handpiece and 3‑way syringe (customizable)
• Instrument holder (assistant): weak suction and 3‑way syringe (customizable)
• Instrument holder: interchangeable between left and right sides; rises and falls to follow the torso
• Special pneumatic fixing function included
• Dimension of the machine (storage status): 640 × 530 × 810 mm
• Foot pedal: drives dental handpieces
• Stainless tray: 22 × 12 × 3 cm (customizable)
• Clean water bottle (optional): 800 ml
• Waste water collection bottle (optional): 1000 ml
