Training simulator JG-A15+

dentalheadmobile

Description

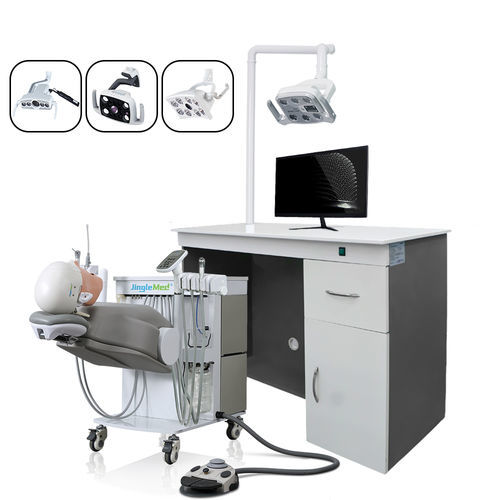

The JG-A15+ phantom head dental simulator integrates an electric mobile workbench with a foldable phantom head and a standard 28-tooth typodont to provide a complete training station for dental schools, clinics and student labs. The unit includes built-in suction, an LED oral lamp, storage drawers and supports multiple optional accessories and customization.

Features

• High-level teaching simulator with an approximate gross weight of 150 kg; consists of simulation head, lighting system, operating workbench and dentist stool.
• Foldable phantom head for vertical storage; phantom head and equipment system move up and down synchronously to improve ergonomics during training.
• Two programmable memory positions; control panel includes a tachometer showing handpiece RPM and a one-button reset function.
• Supplied with one clean water bottle (800 ml) and one waste water bottle (1000 ml); optional built-in water system available on request.
• Integrated storage with two sets of drawers for student materials and instruments.
• Supports optional accessories: LED curing light, scaler, electric motor/micromotor, intraoral camera, HD display and recording lamp. Size and layout customization available.

Recording system

• Recording lamp camera: pixels ≥ 8.8 MP
• Optical magnification: ≥ 40×
• Aperture: F2.0–F3.8
• Display resolution: 4K 2160P/29.97, 2160P/25; FHD: 1080P/59.94, 1080P/50
• ISO modes: High sensitivity and Normal sensitivity
• Focusing: Auto focus, one-click focus, manual focus

Software (requires computer)

• Functions: brightness adjustment, lens adjustment, focus, recording, screenshot, etc.
• Controls: recording, mirroring, screenshot, video and audio playback.
• Special focusing: cross-type focus mode for precise targeting.

Standard component / Included items (table)
Stainless steel workbench L120×W60×H80 cm — 1 pc
Mobile electrical simulation workbench (electric functions) — 1 pc
Phantom head — 1 pc
Standard typodont (28 teeth) — 1 set
Head rest — 1 pc
Simulated backrest — 1 pc
2 sets of drawers — 2 pc
Handpiece tube — 2 pcs
3-way syringe — 2 pcs
Clean water bottle 800 ml — 1 pc
Waste water bottle 1000 ml — 1 pc
Suction tip — 1 pc
LED oral lamp — 1 pc
Recording lamp — 1 pc (optional)
Computer — 1 pc (optional)
Dentist stool — 1 pc

Technical specifications

• Model / Denomination: JG-A15+
• Gross weight (approx.): ~150 kg
• Workbench dimension: L120 × W60 × H80 cm (stainless steel)
• Water: one clean water bottle (800 ml) and one waste water bottle (1000 ml); built-in water system option available
• Storage: 2 sets of drawers integrated into the workstation
• Phantom head: foldable vertically for storage; synchronized vertical movement with the equipment
• Control features: two memory positions; tachometer for handpiece RPM; one-button reset
• Optional equipment supported: LED curing light, scaler, electric motor/micromotor, intraoral camera, HD display, recording lamp
• Recording camera specs: ≥8.8 MP, ≥40× optical magnification, aperture F2.0–F3.8, supports 4K and FHD resolutions
• Software features: brightness/lens/focus control, recording, screenshot, playback, cross-type autofocus mode
• Air requirement guideline: ~35 L/min airflow per unit (multiply by number of simulators to size air supply)
• Installation requirements: power and compressed air required; central water supply/collection can be accommodated
• Customization: size, appearance and functional options can be customized per site and user requirements
