Training simulator JG-A13

dentalheadmanikin set

Overview

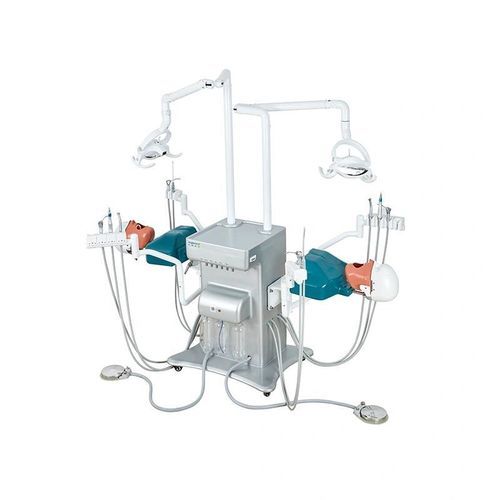

The JG-A13 dental training simulator is an economical manual double-station unit designed for dental schools, clinical training centers and simulation labs. It provides two phantom heads with typodonts, integrated high- and low-speed handpieces, 3-way syringes, LED lamps and basic suction/waste systems to enable simultaneous hands-on practice for two learners.

Included / Standard Components

• Manual movable part ×1
• Dental phantom head ×2
• Dental typodont ×2
• High-speed handpiece ×2
• Low-speed handpiece ×2
• 3-way syringe ×4
• LED lamp ×2
• Dentist stool ×2
• Foot control ×2
• Clean water bottle ×1
• Waste water bottle ×2
• Weak suction ×2

Product Features

• Manual dual-station layout for cost-effective student training and paired practice.
• Two phantom heads with typodonts for realistic oral cavity simulation and procedure rehearsal.
• Integrated high-speed and low-speed handpieces plus 3-way syringes for standard clinical tasks.
• Built-in LED lighting and suction/waste water collection for a complete functional training setup.
• Ergonomic workstation design enabling two learners to practice simultaneously with independent controls.

Typical Applications

• Dental education and student practical training
• Clinical skills practice and demonstrations
• Hands-on workshops and simulation laboratories

Q & A

• Q: Can I change the dimension of the table? A: Yes — size, color, material and design of the table can be customized per user request.
• Q: Can I remove the assistant part? A: Yes — the assistant module can be detached.
• Q: Can I change the outside appearance of the model? A: Yes — external appearance can be customized.
• Q: Can I use a bigger tray? A: Yes — trays can be resized.
• Q: How to choose an air compressor? A: Each unit requires approximately 35 L/min air flow; multiply by the number of simulators to size the compressor.
• Q: What is needed for installation? A: Basic requirements are power and compressed air; central water supply/collection can be arranged if required.

Technical Specifications

• Model: JG-A13
• Type: Double-head dental training simulator (manual dual-station)
• Stations: 2 phantom heads / 2 typodonts
• Handpieces: High-speed ×2, Low-speed ×2
• Syringes: 3-way syringe ×4
• Lighting: LED lamp ×2
• Suction: Weak suction ×2; waste water bottle ×2
• Other accessories: Dentist stools ×2, foot controls ×2, clean water bottle ×1
• Intended use: Dental schools, clinical training centers, student practice labs
