Training simulator JG-A12

extractiondental carefor endodontics

Product Overview

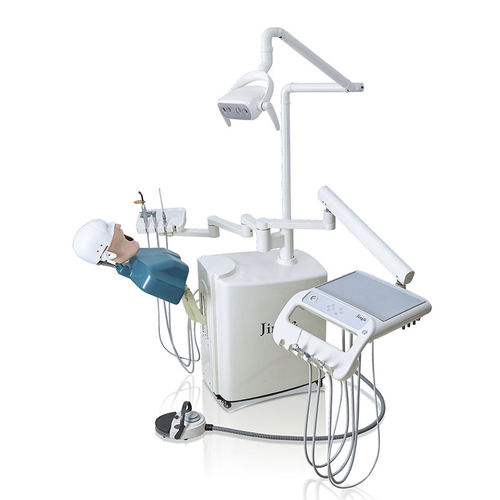

The JG-A12 dental care simulator is an electric training unit designed for dental education and clinical skills development. It integrates an electric movable unit, a phantom head with typodont, high-speed and low-speed handpieces, a 3‑way syringe, LED lamp, weak suction system and an interchangeable mobile assistant table to support flexible laboratory and classroom configurations for dental schools and training centers.

Key Features

• Electric movable unit for realistic patient positioning and chairside workflow simulation
• Phantom head with dental typodont to reproduce oral anatomy and common clinical situations
• High-speed and low-speed handpieces for operative and prophylactic training
• 3-way syringe (air/water), weak suction system and integrated LED treatment light
• Interchangeable mobile assistant table for multiple teaching setups; removable as required
• Includes dentist stool, instrument tray, foot control, clean water and waste water bottles

Standard Components

• Electrical movable unit ×1
• Dental phantom head ×1
• Dental typodont ×1
• High-speed handpiece ×1
• Low-speed handpiece ×1
• 3-way syringe ×2
• LED lamp ×1
• Dentist stool ×1
• Tray ×1
• Foot control ×1
• Clean water bottle ×1
• Waste water bottle ×1
• Weak suction ×1

Usage & Training Modules
The simulator supports hands-on practice for dental examination, prophylaxis (scaling/cleaning), cavity preparation and restoration, endodontic procedures, extractions and related operative techniques. It also enables chairside workflow training, patient communication scenarios and team coordination between operator and assistant.

Q & A

• Q: Can the assistant table dimensions be changed? A: Yes. Size, color, material and design of the table can be customized to user requirements.
• Q: Can the assistant part be removed? A: Yes, the assistant module is removable.
• Q: Is appearance customizable? A: Yes, exterior appearance can be customized on request.
• Q: Can I fit a larger tray? A: Yes, a larger tray can be accommodated.
• Q: What air compressor is required? A: Each unit requires approximately 35 L/min airflow; multiply by the number of simulators for total requirement.
• Q: What are installation requirements? A: Basic requirements are power and compressed air. Centralized water supply/collection can be arranged if preferred.

Accepted Services

• OEM/ODM available

Technical Specifications

• Model: JG-A12
• Primary components: electric movable unit, phantom head, typodont, high-speed and low-speed handpieces
• Fluid handling: clean water bottle and waste water bottle included
• Suction: weak suction system included
• Lighting: integrated LED lamp
• Accessories: dentist stool, tray, foot control, 3-way syringe ×2
• Mobile assistant table: interchangeable / configurable / removable
• Air requirement: ~35 L/min per simulator unit
• Installation: power and compressed air required; centralized water supply optional
