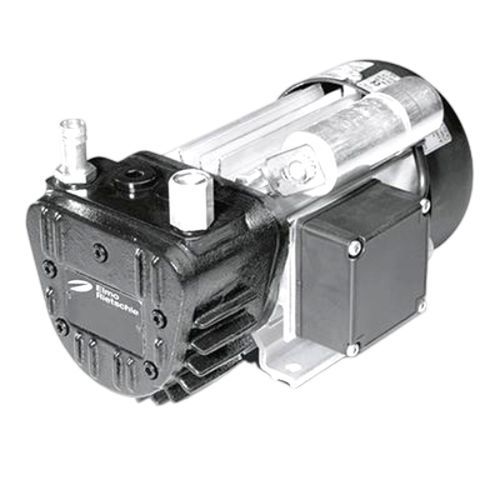

Medical vacuum pump VTE 3-10

rotary vaneoil-freedry

Product overview
The V-VTE 3-10 is a dry-running (oil-free) rotary vane vacuum pump providing an oil-free vacuum with a compact footprint. It is designed for continuous industrial use where low maintenance, low noise and process protection are required.

Benefits

• Energy-efficient operation with reliable suction across the rated range.
• Compact design for easy integration into space-constrained systems.
• Low acoustic emissions thanks to integrated exhaust silencing.
• Corrosion-resistant rotor materials for extended service life in demanding environments.
• Simple maintenance concept and long service intervals.
• Integrated micro-fine suction filtration to protect downstream processes.

Technical data & features

• Nominal volume flow: approx. 3.5–10 m³/h depending on operating point.
• Ultimate vacuum: down to ≈ 150 mbar (abs) depending on operating point.
• Suction filtration: micro-fine filter on the suction side included.
• Exhaust management: built-in silencer to reduce emitted noise.
• Cooling: dedicated cooling fan for motor and pump housing.
• Construction: corrosion-resistant rotors and materials for harsh environments.
• Standards and protection: conforms to DIN EN 60034; motor protection IP54; insulation class F.

Technical documents & resources
Datasheets, product guides and brochures are available for selection, installation and maintenance planning.

Industries and applications

• CNC routing and woodworking
• Composite manufacturing (RTM / LRTM)
• Electronics industry
• General mechanical engineering
• Medical industry
• Printing and paper
• Secondary packaging
• Thermoforming

Technical specifications

• Type: Dry-running (oil-free) rotary vane vacuum pump
• Model designation: V-VTE 3-10
• Nominal pumping speed / volume flow: approx. 3.5 - 10 m³/h
• Ultimate vacuum: up to ≈ 150 mbar (abs) depending on operating point
• Suction side filtration: micro-fine filter included
• Exhaust: built-in silencer
• Cooling: motor and pump housing cooling fan
• Rotor materials: corrosion-resistant rotors
• Standards: DIN EN 60034
• Motor protection: IP54
• Insulation class: F
• Design advantages: compact footprint, low noise, low maintenance
