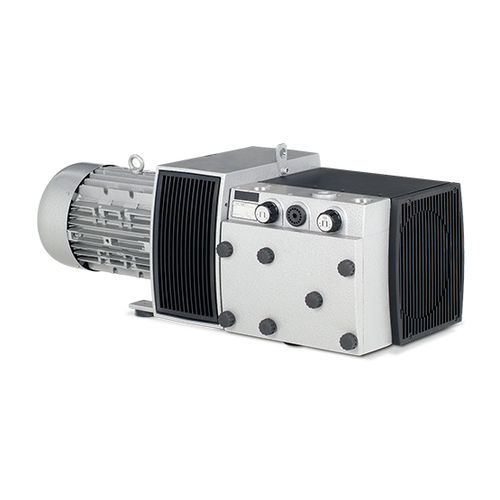

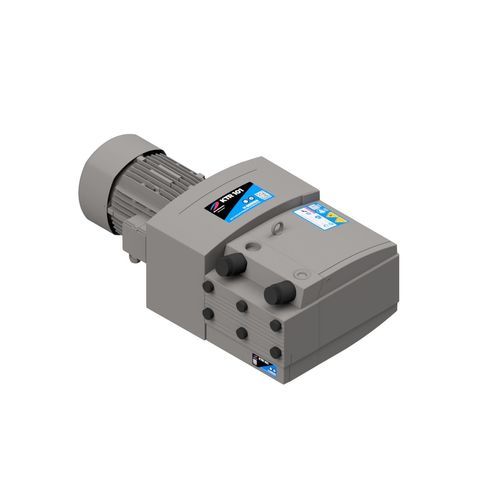

Medical vacuum pump V-KTRrotary vaneoil-freedry
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- rotary vane
- Options
- oil-free, dry
- Flow
Min.: 58 m³/h
(2,048.25 ft³/h)Max.: 159 m³/h
(5,615.03 ft³/h)- Pressure
Min.: -0.6 bar
(-8.7023 psi)Max.: 0.6 bar
(8.7023 psi)
Description
Product overview
Key features and benefits
Technical data summary
Industries & applications
Technical specifications
- The KTR 61–141 is a dry-running rotary vane pressure-vacuum pump engineered for industrial processes, combining compressor and vacuum functions in a single unit for flexible system integration.
- Volume flow range: 58–159 m³/h. Operating range: -0.6 to +0.6 bar.
Key features and benefits
- Dry-running rotary vane design for oil-free operation suitable for contamination-sensitive processes.
- Micro-fine filtration on both suction and exhaust to protect downstream equipment.
- Acoustic enclosure for low-noise operation with a ducted cooling air outlet.
- Integrated internal fan for optimized cooling and thermal stability under continuous use.
- Pressure and vacuum regulating valves for precise process control.
- Optional second vacuum connection to increase installation flexibility.
- Rotor supported by bearings on both sides and flange motor with torsionally flexible coupling for robust mechanical design.
- Engineered for high efficiency, quiet operation and reduced maintenance intervals.
Technical data summary
- Typical volume flow: 58–159 m³/h.
- Operating pressure/vacuum: -0.6 to +0.6 bar.
- Micro-fine filters on suction and exhaust sides.
- Acoustic enclosure and integrated cooling fan.
- Pressure and vacuum regulating valves standard; optional dual vacuum connections.
- Rotor bearings on both sides; flange motor with torsionally flexible coupling.
Industries & applications
- CNC routing and woodworking
- Composite manufacturing (RTM/LRTM)
- Electronics manufacturing
- Mechanical engineering and automation
- Medical device production
- Printing and paper converting
- Secondary packaging and thermoforming
Technical specifications
- Series / models: KTR (KTR 61–141)
- Volume flow: 58–159 m³/h
- Operating range: -0.6 / +0.6 bar
- Filtration: micro-fine filters on suction and exhaust
- Acoustic enclosure with ducted cooling outlet
- Cooling: integrated internal fan
- Control: pressure and vacuum regulating valves
- Connections: optional dual vacuum connections
- Mechanical design: bearings on both rotor sides; flange motor with torsionally flexible coupling
