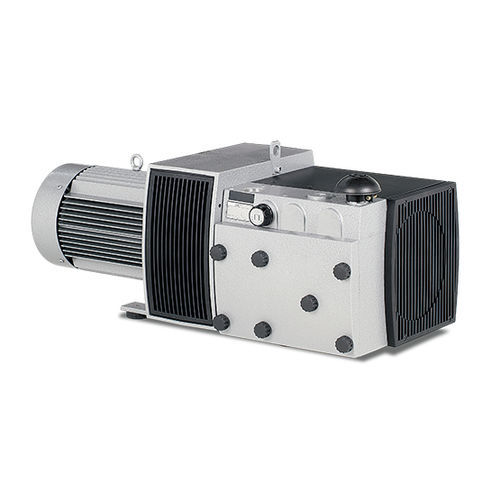

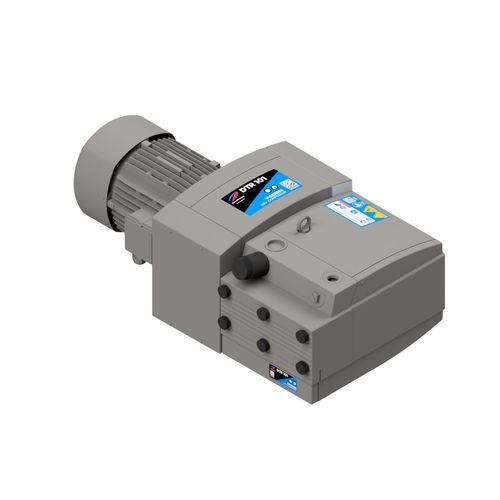

Medical compressor V-DTR

laboratoryrotary vanedry

Introduction
The V-DTR series is engineered for demanding industrial compressed-air supply. With volume flow rates from 54 to 150 m³/h and operating pressures up to +1.5 bar, the V-DTR offers a versatile solution for continuous use. Key components include a micro-fine inlet filter, low-noise sound cover with provision for ducted cooling-air outlet, a pressure regulating valve and an advanced air cooling system. Bearings on both sides of the rotor and a flange motor with torsionally flexible coupling contribute to quiet operation and long service intervals. The V-DTR 61-141 is designed for easy servicing and reliable continuous performance.

Main features

• Volume flow rates: 54 to 150 m³/h (model dependent).
• Operating pressure capability: up to +1.5 bar (positive pressure).
• Micro-fine inlet filter for protection of downstream equipment.
• Low-noise construction with sound cover and ducted cooling-air outlet option.
• Pressure regulating valve for stable compressor output.
• Advanced air cooling system to maintain optimal operating temperatures.
• Bearings on both sides of the rotor for enhanced stability.
• Flange motor with torsionally flexible coupling; protection class IP55; insulation class F.
• Designed for straightforward servicing and operation.

Benefits

• Adaptable volume flow to meet diverse industrial air-supply needs.
• Enhanced pressure capability suitable for higher-pressure applications.
• Clean air delivery and protection of downstream equipment through micro-fine filtration.
• Quiet operation improving the working environment.
• Consistent performance via integrated pressure control.
• Durable mechanical layout supporting continuous operation and reduced downtime.

Industries & Applications

• CNC routing and woodworking.
• Composite manufacturing (RTM / LRTM).
• Electronics manufacturing.
• General mechanical engineering.
• Medical industry.
• Printing and paper.
• Secondary and thermoforming packaging.

Technical specifications

• Series / Model designation: V-DTR (example range: V-DTR 61 - 141).
• Volume flow: approx. 54 - 150 m³/h (model dependent).
• Operating pressure: up to +1.5 bar.
• Inlet filter: micro-fine inlet filter.
• Cooling: air cooling system; design supports ducted cooling-air outlet.
• Noise: low-noise construction with sound cover.
• Pressure control: integrated pressure regulating valve.
• Rotor support: bearings on both sides of the rotor.
• Motor: flange motor with torsionally flexible coupling; protection class IP55; insulation class F.
• Serviceability: designed for easy servicing and operation.
