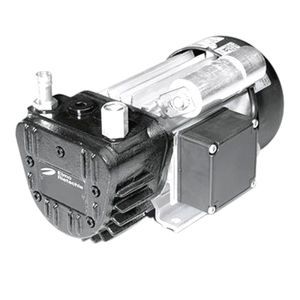

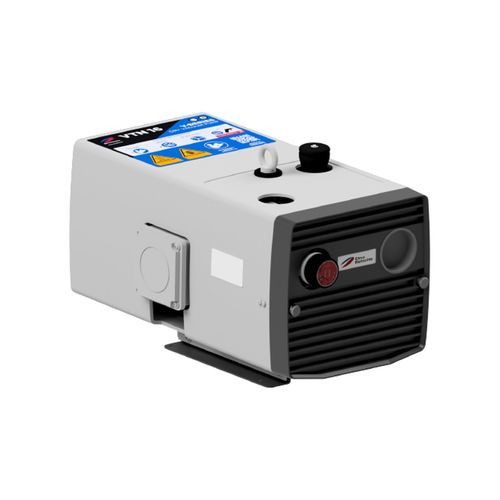

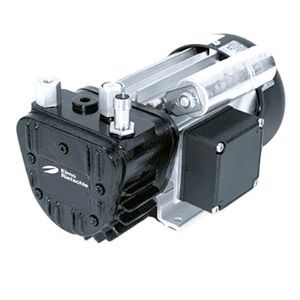

Medical vacuum pump V-VTN series

laboratoryrotary vanedry

Overview
The V-VTN series (V-VTN 16, V-VTN 26, V-VTN 41) are dry-running rotary vane pressure-vacuum pumps offering suction capacities from approximately 17 to 50 m³/h and maximum vacuum levels up to 150 mbar (abs.). Engineered for industrial applications, these pumps provide easy installation, maintenance and integration into process systems.

Benefits

• Efficient suction performance across a range of small to medium flow requirements.
• Stable vacuum delivery up to 150 mbar (abs.) for controlled processes.
• Standardized sound enclosure reduces noise and serves as a safety cover.
• Internal cooling fan to maintain optimal temperature under continuous operation.
• Safety-focused design prevents contact with hot components.
• Simplified maintenance and installation for reduced downtime.

Technical data / Features

• Series: V-VTN (models 16, 26, 41).
• Suction capacity: ~17–50 m³/h depending on model.
• Maximum vacuum: up to 150 mbar (abs.).
• Vacuum regulating valve for precise control.
• Micro-fine suction filter integrated on the inlet.
• Standard sound cover to lower operational noise and enhance operator safety.
• Additional internal cooling fan for temperature management.
• Low-vibration design and pulsation reduction for smooth airflow.
• Multiple connection options for system integration.

Industries / Applications

• CNC routing and woodworking
• Composite manufacturing (RTM / LRTM)
• Electronics industry
• General mechanical engineering
• Medical industry
• Printing and paper handling
• Secondary packaging
• Thermoforming

Specifications / Technical data

• Models: V-VTN 16, V-VTN 26, V-VTN 41.
• Suction capacity: approx. 17–50 m³/h (model-dependent).
• Vacuum level: up to 150 mbar (abs.).
• Included: micro-fine suction filter, vacuum regulating valve, standardized sound cover, internal cooling fan.
• Performance: low vibration, reduced pulsation, quiet operation, versatile connection options.
