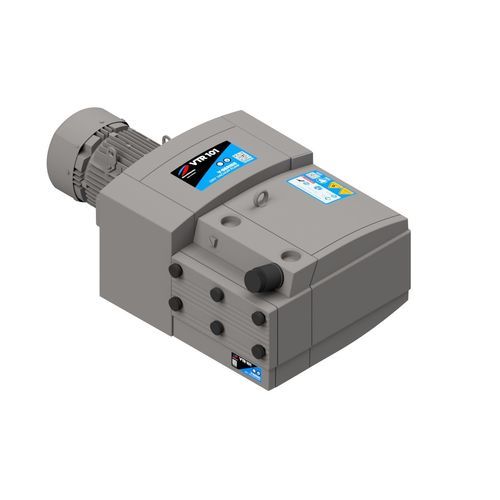

Medical vacuum pump V-VTR

laboratoryrotary vanedry

Overview
The VTR 61–141 is a range of dry-running rotary vane vacuum pumps offering suction capacities from 55 to 154 m³/h and an ultimate vacuum up to 200 mbar (abs.). Each unit is equipped with an IE3-class motor, rotor bearings on both sides and a sound cover designed to allow a ducted cooling-air outlet. The design prioritises easy maintenance, continuous industrial operation and low noise emissions.

Benefits

• Suction capacity covering a wide range (55–154 m³/h) to match varied process demands
• Operating range up to 200 mbar (abs.) suitable for multiple applications
• Micro-fine inlet filtration to protect internal components and ensure clean intake air
• Quiet operation to reduce workplace noise impact
• Integrated vacuum regulating valve for precise vacuum control
• Ductable cooling-air outlet via sound cover for effective air cooling
• Accessible design for straightforward maintenance and reduced downtime
• Flange-mounted motors with torsionally flexible coupling, compliant with DIN EN 60034, IP55 protection and insulation class F

Technical data (highlights)

• Suction capacity: 55 to 154 m³/h
• Ultimate vacuum: up to 200 mbar (abs.)
• Motor: IE3 efficiency class
• Rotor bearings: bearings on both sides
• Inlet filtration: micro-fine inlet filter
• Vacuum control: integrated vacuum regulating valve
• Cooling: sound cover allowing ducted cooling-air outlet (air cooling)
• Design: flange-mounted motors with torsionally flexible coupling (DIN EN 60034), IP55, insulation class F

Industries and applications

• CNC routing and woodworking
• Composite manufacturing (RTM / LRTM)
• Electronics industry
• General mechanical engineering
• Medical industry
• Printing and paper
• Secondary packaging
• Thermoforming

Features / Technical specifications

• Suction capacity: 55 - 154 m³/h
• Operating (ultimate) vacuum: up to 200 mbar (abs.)
• Motor efficiency: IE3 class
• Motor mounting: flange-mounted with torsionally flexible coupling
• Motor protection / insulation: IP55 / class F
• Rotor support: bearings on both sides
• Inlet: micro-fine filter
• Vacuum control: vacuum regulating valve
• Cooling: air cooling via sound cover with ducted outlet
• Designed for easy servicing and low-noise operation
