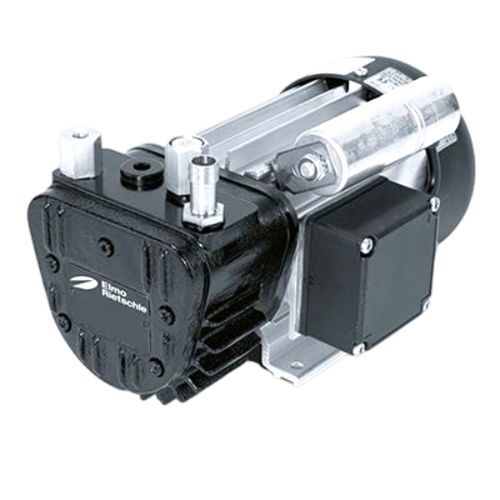

Medical compressor V-DTE

laboratoryrotary vanestationary

Description
The V-DTE is a compact dry-running rotary vane compressor designed for integration into industrial equipment, providing stable compressed air with a minimal footprint and low noise.

Benefits

• Consistent output: 3.5–12 m³/h for a reliable supply of compressed air.
• Pressure capability: up to +1.0 bar overpressure for diverse applications.
• Space-efficient design for easy installation in machinery.
• Quiet operation to improve the working environment.
• Corrosion-proof rotors for extended service life.
• Ready-to-use: includes hose connector, inlet silencer and pressure relief valve as standard.
• Standards compliant: DIN EN 60034; Protection class IP54; Insulation class F.

Technical data / Key features

• Volume flow range: 3.5 to 12 m³/h.
• Operating pressure: up to +1.0 bar (overpressure).
• Integrated micro-fine suction filter to protect equipment and processes.
• Inlet silencer to reduce intake noise.
• Motor fan cools motor and pump housing to maintain optimal temperatures.
• Regulation valve included for precise pressure control.
• Corrosion-proof rotors.
• Protection: IP54; Insulation class F (DIN EN 60034 compliant).

Specifications

• Model: V-DTE.
• Brand: Elmo Rietschle.
• Flow: 3.5–12 m³/h.
• Pressure range: up to +1 bar (overpressure capability).
• Suction side: integrated micro-fine filter.
• Standard fittings: hose connector, inlet silencer, pressure relief valve.
• Cooling: motor fan cools motor and pump housing.
• Rotors: corrosion-proof construction.
