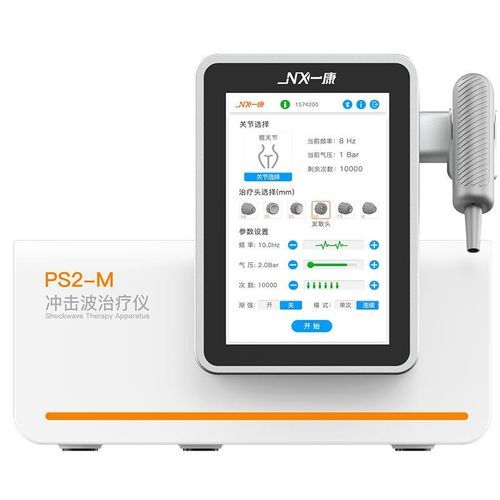

Orthopedic treatment ESWT unit PS2-M

table-top

Extracorporeal shock wave therapy device (convenient type) PS2-M is a clinical-grade extracorporeal shock wave system designed for musculoskeletal pain relief and rehabilitation. It provides adjustable treatment parameters, multiple professional presets and patient data management suitable for clinical environments.

Key features

• Two treatment modes: safe crescendo mode and standard mode; energy increases gradually to reduce patient discomfort. Maximum energy: 5.0 Bar.
• Adjustable parameters: frequency (0.5–22 Hz), pressure (1.0–5.0 bar) and preset treatment times via an intuitive 10.5-inch color touch panel.
• Multi-functional prescription module with professional presets for common anatomical sites and storage of multiple treatment protocols.
• Ergonomic double-grip treatment gun (European clinical style) for ease of use with seated or supine patients; treatment head and bullet are removable for maintenance.
• Five probe specifications to cover varied clinical indications.
• Stepwise selection for pressure and frequency and adjustable pulse counter (1,000–10,000, step 500) for precise dosing.
• Imported ultra-quiet power source for low-noise operation.
• Patient database management capable of storing over 10,000 cases.

Prescription module - target treatment sites

• Elbow
• Knee
• Shoulder
• Hip
• Wrist
• Hand/Wrist
• Waist
• Foot/Ankle
• Fat accumulation

Characteristics / Technical specifications

• Model: PS2-M
• Maximum energy: 5.0 Bar
• Frequency range: 0.5 Hz – 22 Hz
• Pressure range: 1.0 bar – 5.0 bar
• Pulse counter: 1,000 – 10,000 (step 500)
• Display: 10.5-inch color touch panel
• Treatment gun & head lifespan: approx. 3,000,000 impacts under normal conditions
• Number of probe specifications: 5
• Database capacity: stores more than 10,000 patient records
• Noise: imported ultra-quiet power source
