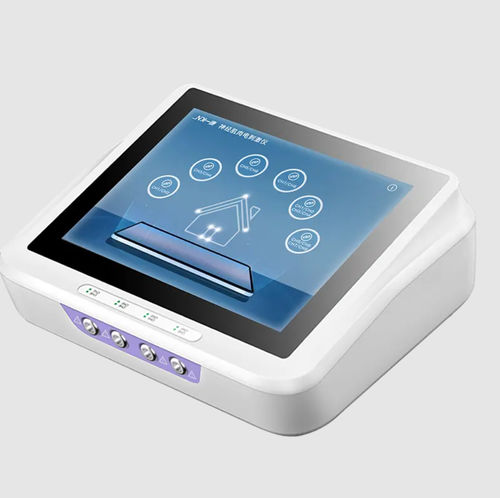

Transcutaneous neurostimulator PE1

for myostimulationfor peripheral nerve stimulationfor tibial nerve stimulation

The PE1 neuromuscular electrical stimulation device is a clinical electrotherapy system for rehabilitation and physiotherapy. It is designed to stimulate neuromuscular function to prevent and treat disuse atrophy, assist rehabilitation of denervated muscles, treat spasticity and maintain or improve joint mobility. The device provides configurable multi-channel outputs, adjustable frequency and pulse settings, safety protections and a high-definition touchscreen for clinical operation.

Indications

• Prevention and treatment of disuse muscle atrophy; increase or maintenance of joint mobility.
• Functional exercise for muscles with reduced innervation to improve or maintain muscle strength.
• Treatment of spastic muscles and support for correction of certain deformities (e.g., scoliosis, flat foot, shoulder joint subluxation).
• Application to denervated muscles in paralysis and atrophy due to lower motor neuron lesions (examples: facial nerve palsy; ulnar, radial and median nerve injuries; lower limb weakness after sciatic nerve injury; tibial and peroneal nerve paralysis).

Features

• Model range: PE1 series with variants PE1-2, PE1-4, PE1-6, PE1-8 (different channel counts).
• Output modes: synchronous, asynchronous and independent multi-channel outputs.
• Adjustable frequency: 1 Hz to 180 Hz; adjustable pulse period: 5 ms to 1000 ms.
• Automatic zeroing of output at treatment end with completion reminder.
• Electrode-off detection and channel auto-stop with user prompt to protect patient safety.
• High-definition touchscreen with clear, fast parameter control; anti-scratch and anti-slip screen surface.

Core advantages

• Flexible multi-channel modes support personalized multi-site treatment for one patient or simultaneous treatments for multiple patients.
• Wide adjustable frequency and pulse period cover training and therapeutic needs across different muscle groups while minimizing electrolytic risk.
• Safety functions (electrode-off reminder and automatic output stop) reduce unintended stimulation.
• Output controls automatically return to start position after treatment for predictable clinical workflow.
• Intuitive HD touch interface enables quick setup and clear parameter monitoring.

Technical specifications

• Models/variants: PE1-2, PE1-4, PE1-6, PE1-8.
• Output modes: synchronous, asynchronous, independent (multi-channel).
• Frequency range: 1 Hz – 180 Hz.
• Pulse period (pulse width): 5 ms – 1000 ms (adjustable).
• Multi-channel capability for single or multiple simultaneous treatments.
• Electrode-off reminder and channel auto-stop; automatic zeroing of output after treatment.
• HD touchscreen (anti-scratch, anti-slip).
• Output current design minimizing electrolytic risk.
