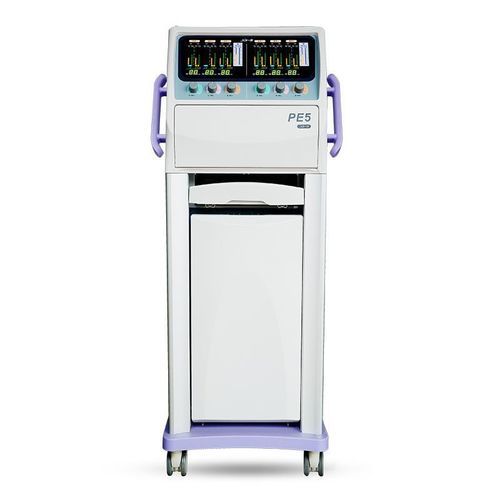

Electric stimulator PE5

6-channel

The PE5 interference electrotherapy machine produces low-frequency currents in tissues by combining traditional and dynamic interference electrotherapy methods to inhibit sensory nerves and improve local blood circulation.

Product introduction

• The device generates low-frequency interference currents that interact with endogenous currents to reduce sensory nerve activity, dilate capillaries and arteries, and promote local blood flow to support absorption of inflammatory exudate and edema.

Applications

• Rehabilitation, physiotherapy, pain management, tuina, acupuncture, traditional Chinese medicine, orthopedics, geriatric medicine, community rehabilitation and sports medicine.

Features

• Two independently adjustable output sets; each set contains 3 channels (total 6 channels); each channel supports 4 electrodes (total 24 electrodes).
• Expansion mode allows output extension to 2-channel per set (up to 8-electrode output available).
• Output knob automatically returns to start position after adjustment.
• Safe output with detector monitoring function.
• Overcurrent protection circuit limits output when treatment current exceeds the maximum limit.
• Two heating and insulation plates for warming electrodes.
• Multiple control modes and a current-balance adjustment button to fine-tune differences between outputs.
• Adsorption electrodes replace bonded gel electrodes for easier use and lower operating cost.

Indications

• Soft tissue analgesia, promotion of local blood circulation, excitation and dilation of vascular nerves; assists elimination of pain mediators and pathological metabolites, reduces edema and tissue/nerve tension.

Contraindications

• Patients with cardiac pacemakers, pregnant or breastfeeding women, persons with active bleeding or skin diseases in the treatment area, and patients with malignant tumors.

Technical specifications

• Model: PE5
• Channels: 6 (two sets of 3 channels)
• Electrodes: 24 (4 per channel)
• Waveform: Sine wave
• Carrier frequency: 2500 Hz, 4000 Hz, 5000 Hz
• Treatment frequency: 1–199 Hz
• Treatment duration: 1–99 min
• Safety: Overcurrent protection
• Voltage: AC 220V 50/60Hz
• Heating/insulation plates: 2
