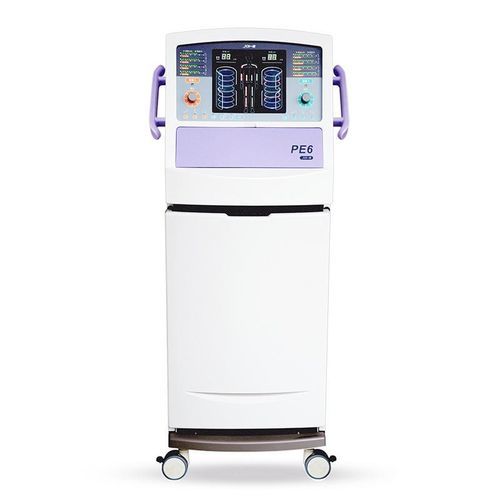

Electric stimulator PE6

4-channel

Overview

The PE6 is an intermediate-frequency electric therapy device for rehabilitation and pain management. It delivers low-frequency–modulated intermediate-frequency currents to provide adjustable, targeted stimulation that reaches deep muscle layers.

Working principle

The device modulates an intermediate-frequency carrier with low-frequency signals based on interference electrotherapy so that low-frequency effects are transmitted at the surface while intermediate-frequency currents penetrate deeper, enabling therapeutic effects on deep muscle tissues by changing the treatment frequency.

Key features

• Variable treatment waveforms and frequencies for wide and deep stimulation.
• Clear display interface with intuitive graphical controls.
• Interchangeable treatment modes and settings for different body areas (A, B, C, Manual, Mixed).
• Two independently adjustable output groups — 2 channels per group, total 4 channels; supports 8 electrodes.
• Output knobs automatically return to start position after treatment.
• Overcurrent protection circuit limits current if treatment current exceeds the maximum limit.
• Heating/insulation plate option permits electrode warming.
• Adjustable suction pressure for adsorption electrodes.
• Current-balance adjustment to modify differences between outputs in the same set.
• Reusable adsorption electrodes as an alternative to adhesive gel electrodes, reducing operating cost.

Clinical indications

• Soft tissue analgesia and relief of muscle pain.
• Promotion of local blood circulation and vasodilation.
• Facilitation of nerve excitation and enhanced discharge of pain-causing mediators and pathological metabolites.
• Reduction of edema and tissue tension. Clinical uses include rehabilitation, physiotherapy, pain management, tuina, acupuncture, traditional Chinese medicine, orthopedics, dry medicine, geriatrics, community rehabilitation and sports medicine.

Contraindications

• Not suitable for patients with cardiac pacemakers, pregnant or lactating women, patients with active bleeding or severe skin disease, or patients with malignant tumors.

Technical specifications

• Model: PE6
• Channels: 4
• Electrodes: 8
• Waveform: Sine wave
• Treatment frequency: 1000 Hz–11000 Hz
• Treatment duration: 1–99 min
• Treatment modes: A, B, C, Manual, Mixed
• Power: 341 VA
• Voltage: AC 220 V 50/60 Hz
