Orthopedic surgery pulsed lavage system palaJet®

wound debridement

Product overview

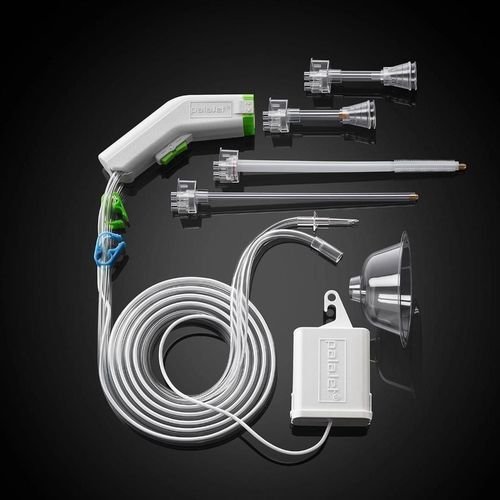

The palaJet® single‑use Pulse Lavage System is a battery‑powered, disposable irrigation system designed for bone bed cleaning, open wound irrigation and soft tissue/surgical site cleaning. The system comprises an ergonomic handpiece with a nozzle lock and an integrated battery pack and is the single‑use alternative to the palaJet® AC Pulse Lavage System.

Key features

• Disposable, battery‑powered pulse lavage system
• Ergonomic handpiece with nozzle lock and speed/power switch
• Includes hip and knee nozzles in each set; additional nozzles available separately
• No sterilisation required

Performance data

• Flow rate (high power): up to 1.3 l/min (1,300 ml/min)
• Flow rate (low power): from 900 ml/min
• Pressure (high): up to 15 psi
• Pressure (low): from 9 psi

Attachments / nozzles

• Set includes: Fan Spray Nozzle (Knee Nozzle) and Femoral Nozzle (Hip Nozzle)
• Available separately: Fan Spray/Knee Nozzle, Femoral/Hip Nozzle, Shower Spray Nozzle, Large Splash Shield, Femoral Brush Nozzle

Advantages

• Simple handling: ergonomic design and reliable nozzle locking for secure use during procedures
• Adjustable speed and pressure via handpiece switch
  • High mode: up to 1,300 ml/min and up to 15 psi for orthopaedic irrigation
  • Low mode: from 900 ml/min and from 9 psi for gentle wound irrigation
• Reduced logistical effort: no reprocessing or sterilisation required
• Modular: additional attachments click onto the palaJet® handpiece to meet specific surgical requirements

Indications
Recommended for cleaning bone beds, irrigation of open wounds, soft tissue cleaning and surgical site irrigation.

Technical specifications

• Product name/series: palaJet®
• Type: single‑use pulse lavage system with integrated battery pack
• Components: ergonomic handpiece, integrated battery, nozzles (included or sold separately)
• Flow rate (high): up to 1.3 l/min (1,300 ml/min)
• Flow rate (low): from 900 ml/min
• Pressure (high): up to 15 psi
• Pressure (low): from 9 psi
• Included nozzles: Fan Spray (Knee) and Femoral (Hip)
• Additional nozzles available: Shower Spray, Large Splash Shield, Femoral Brush
• Sterilisation: not required (disposable)
• Alternative model: palaJet® AC with reusable power adapter
• Data on file: in vitro data available at Heraeus Medical
