Orthopedic surgery pulsed lavage system palaJet® AC

wound debridement

Product overview
The palaJet® AC is a combined pulse lavage system powered by alternating current (AC). The system comprises a disposable pulse lavage handpiece and a reusable AC power adapter, providing a battery-free alternative for intraoperative irrigation and wound cleansing.

Main features / Benefits

• Indicated for open wound cleaning, soft tissue irrigation, and surgical site decontamination, including orthopaedic procedures.
• Reusable AC Power Adapter reduces the need for alkaline batteries and associated hazardous waste.
• Disposable handpiece delivers high flow rates and controllable pressure suitable for different clinical needs.
• Standard system includes hip (femoral/hip) and knee (fan spray/knee) nozzles; additional attachments available separately.

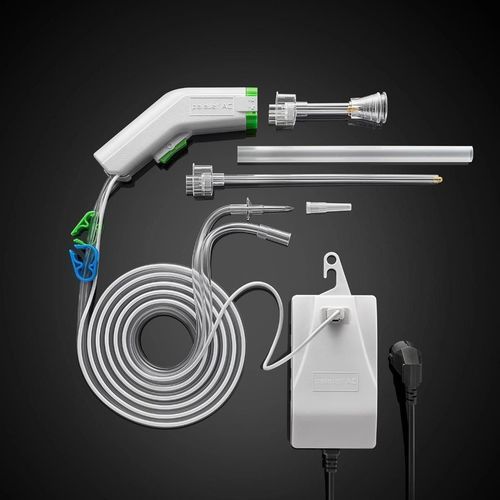

System composition

• palaJet® AC disposable pulse lavage handpiece
• palaJet® AC reusable AC Power Adapter

Advantages at a glance

• Ergonomic handling: handpiece with nozzle lock secures the nozzle during procedures.
• Adjustable speed/pressure: switch on the handpiece allows higher pressure for orthopaedics or gentler irrigation for wounds.
  • High flow rate: up to 1,300 ml/min; pressure up to 15 psi.
  • Low flow rate: from 900 ml/min; pressure from 9 psi.
• Reduced waste: reusable adapter eliminates the need for disposable alkaline batteries.
• Modular attachments: multiple nozzles and accessories available, attachable via a click mechanism.

Overview of attachments / nozzles
Included and available attachments: Fan Spray Nozzle (Knee), Femoral/Hip Nozzle, Shower Spray Nozzle, Large Splash Shield, Femoral Brush Nozzle. Fan Spray/Knee and Femoral/Hip nozzles are included with the system; other attachments sold separately.

Handling resources
Handling videos available: Full version (product, components, preparation, use, after-use, nozzle change); Short version — System handling; Short version — Nozzle handling (focus on attachment/disconnection).

Downloads
Instructions for use and product flyers (English) are available: palaJet AC Disposable Lavage System Instructions for Use; palaJet AC Power Adapter Instructions for Use; palaJet AC Flyer; palaJet AC Handling Guideline; palaJet Flyer Available Attachments.

Indications
Device intended for cleaning open wounds, irrigation of soft tissues, and cleaning of surgical operation sites.

Technical characteristics / specifications

• System type: Combined pulse lavage system with AC power (reusable adapter + disposable handpiece).
• Flow rate (high): up to 1,300 ml/min.
• Pressure (high): up to 15 psi.
• Flow rate (low): from 900 ml/min.
• Pressure (low): from 9 psi.
• Handpiece: ergonomic design with nozzle lock and speed/pressure switch.
• Power supply: reusable AC Power Adapter (battery-free alternative).
• Attachments: Fan Spray/Knee Nozzle and Femoral/Hip Nozzle included; additional nozzles and accessories available separately (Shower Spray Nozzle, Large Splash Shield, Femoral Brush Nozzle).
