Filling and sealing machine for the pharmaceutical industry GIANT1 Series

for pharmaceutical applicationsautomaticlinear

Overview

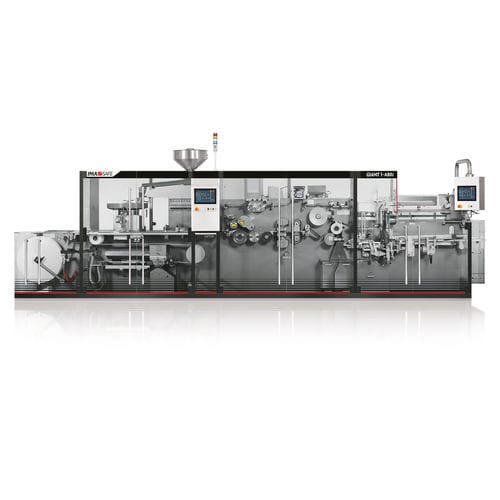

The GIANT1 Series of blister-packaging machines delivers wide flexibility for product shapes, blister sizes and configurations and is aimed at just-in-time production of small to medium batches. It features advanced design, feeders, quality controls and servomotors. GIANT1 integrates the patented Sombrero universal feeder for high versatility and containment-ready feeding area design. The line is compact with linear workflow and excellent operator visibility.

Key features

• Containment-ready feeding area for solid pharmaceutical shapes
• Patented Sombrero universal feeder for robust feeding of various shapes, tolerances and fragments
• Compact, linear workflow with high operator accessibility
• Innovative cutting unit and rejection for non-compliant blisters
• Quick and reproducible guided format changeover
• Support for alu-alu blister pockets without limitation
• Patented automatic blister recovery magazine to maximize feeding efficiency to the cartoner

New capability
NEW! The GIANT1 Series now includes a standard connection module that enables blister flipping to handle cartons with opposite tuck-in closures and blister interlocking to reduce carton volume or increase blister capacity. This improves logistics and sustainability while avoiding dedicated blister designs; an optional bypass mode is available.

Highlighted modules / technologies

• Sombrero patented universal feeder — resilient to product tolerances and fragments, designed to maintain continuous production and to support high containment levels
• Pre-heating and forming area (standard forming and heating units)
• Sealing and cutting units with positive blister transfer options
• Coding and perforation station suitable for product marking and secondary operations
• Track & Trace compatible cartoner-integrated module for camera and ink-jet systems (serialization ready)

Machine versions

• GIANT1-A80i — integrated blister-packaging machine and cartoner with positive blister transfer; up to 350 blisters/min and 175 cartons/min
• GIANT1-A86 — integrated blister-packaging machine and cartoner with positive blister transfer; up to 350 blisters/min and 350 cartons/min
• GIANT1-A80 — integrated blister-packaging machine and cartoner, connection by magazine; up to 400 blisters/min and 175 cartons/min
• GIANT1 Stand Alone — GIANT1 configured to be connected to any downstream packaging machine (cartoner, wallet packer, flowpacker or end-of-line) for flexible production layouts

Media & gallery notes
Machine media includes a product video trailer and a gallery showing pre-heating/forming, feeding area, sealing area, coding & perforation, cutting unit, blister recovery magazine, blister transfer to the cartoner, carton pick-up/opening, product insertion and carton closing scenes. These items illustrate machine layout and critical process stations.

Technical data (table)
TECHNICAL DATA GIANT1 Series
Blister dimensions vs Carton dimensions:
Width — Blister: 30-90 mm | Carton: 35-97 mm
Length — Blister: 60-145 mm | Carton: 65-154 mm
Depth / Height — Blister: 3-12 mm | Carton: 12-106 mm

Production output (per model):
Model — GIANT1 (family)
Blisters — up to 400 blisters/min.
GIANT1-A80i — up to 350 blisters/min. — Cartons: up to 175 cartons/min.
GIANT1-A86 — up to 350 blisters/min. — Cartons: up to 350 cartons/min.
GIANT1-A80 — up to 400 blisters/min. — Cartons: up to 175 cartons/min.

Track & Trace
The cartoner-integrated Track & Trace module supports camera and ink-jet system application for serialization in a compact line layout, optimizing efficiency and line length.

Characteristics / spécifications techniques

• Series name: GIANT1 Series
• Brand: IMA
• Containment-ready feeding area (designed for containment application)
• Patented Sombrero universal feeder (robust with fragments and varied shapes)
• Blister width range: 30–90 mm
• Blister length range: 60–145 mm
• Blister depth/height range: 3–12 mm
• Carton width range: 35–97 mm
• Carton length range: 65–154 mm
• Carton depth/height range: 12–106 mm
• Maximum blister speed (family): up to 400 blisters/min (model dependent)
• GIANT1-A80i carton speed: up to 175 cartons/min
• GIANT1-A86 carton speed: up to 350 cartons/min
• GIANT1-A80 blister speed: up to 400 blisters/min (with magazine connection)
• Optional standard connection module for blister flipping and blister interlocking (logistics and sustainability benefits)
