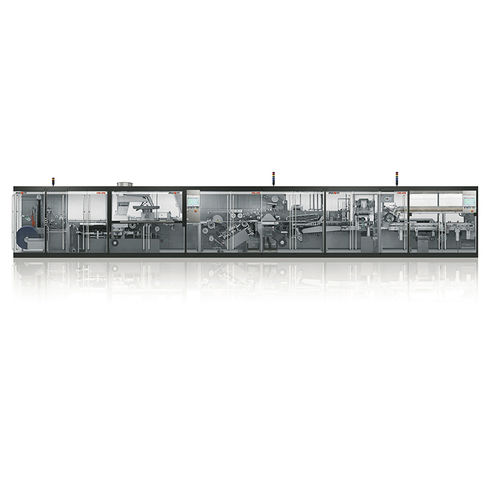

Computer-controlled packaging system C96-A96

continuouscompactblister

Overview
C96-A96 is a super-high-speed blister packaging line engineered to deliver large batch production within a compact footprint. Based on a 'continuous-running' concept, the line combines positive blister transport with optimized product feeding to ensure stable operation with a wide range of packaging materials. The design emphasizes accessibility and ergonomics for fast format changes and routine maintenance.

Key points

• High capacity: up to 1,300 blisters/min in a compact layout.
• Smooth running: continuous-running concept with positive blister transfer.
• Accessibility: full access to key areas for maintenance and inspection.
• Ergonomics: lightweight format parts and no lifter required for changeover.
• Changeover: rapid, computer-guided format changeover.

Good to know: Track & Trace
The cartoner-integrated module for camera and ink-jet printing supports cartoning serialization, reducing overall line length and improving process efficiency.

Plant / Certification
Production plant: IMA Safe.

Gallery highlights (areas shown)

• Forming area
• Feeding area
• Sealing area
• Cutting unit and positive transport
• Carton magazine
• Carton pick-up, opening and positioning

Machine layout & technical information
Technical data available on blister dimensions, carton dimensions and production output (see specifications block).

Specifications / Technical data

• Blister dimensions (W x L x D/H): 30-90 mm x 65-145 mm x 3-12 mm
• Carton dimensions (W x L x D/H): 35-95 mm x 70-150 mm x 12-90 mm
• Production output (blisters): up to 1,300 blisters/min
• Production output (cartons): up to 500 cartons/min
