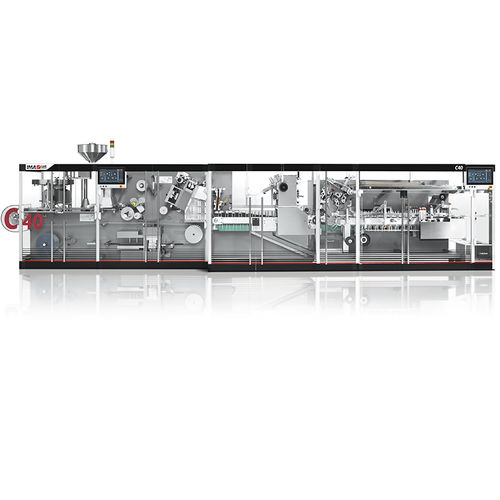

Filling and sealing machine for pharmaceutical applications C40 Series

for the pharmaceutical industryautomatic

Overview
The best price-performance ratio machine in its range, the C40 Series is the answer for customers who require efficient production of small/medium batches with frequent changeovers. The modern design ensures full visibility of the packaging process and complete operator accessibility. Downtimes are minimised thanks to easy cleaning and rapid changeovers, while consolidated technology keeps maintenance requirements low.

Highlights

• Competitive price-performance: optimised for productive output while controlling costs.
• Secondary packaging connections: easily integrates with cartoners, wallet machines, flow packers and end-of-line equipment to cover varied production workflows.
• Easy cleaning: smooth surfaces, no hidden corners and full accessibility allow fast cleaning cycles.
• Reduced format parts: minimal number of format components to accelerate changeovers.

Containment solution
The design of IMA blister machines allows integration with containment systems. Reliable feeding systems reduce operator intervention inside containment enclosures.

Media / Gallery (selected items)

• Machine video trailer
• Pre-heating and forming area
• Feeding area
• Filling control system
• Sealing area
• Coding and perforation area
• Cutting area
• Carton pick-up and opening
• Product and leaflet introduction (product insertion into the carton)
• Carton closing

Machine versions

• C40-A86 / A110 / Dynamica – Available in 3 rows (up to 525 blisters/min) or 2 rows (up to 350 blisters/min). Output: 525 or 350 blisters and up to 350 cartons/min (depending on configuration).
• C40-A83 – Available in 3 rows (up to 525 blisters/min) or 2 rows (up to 350 blisters/min). Output: 525 or 350 blisters and up to 160 cartons/min.
• C40 Stand Alone – Available in 3 rows (up to 525 blisters/min) or 2 rows (up to 350 blisters/min). Output: 525 or 350 blisters/min. Can be connected to downstream packaging machines (cartoner, wallet packer, flowpacker or end-of-line).

Technical characteristics / Specifications

• Blister dimensions: Width 30-90 mm
  Length 60-220 mm
  Depth / Height 3-12 mm
• Carton dimensions: Width 35-95 mm
  Length 65-150 mm
  Depth / Height 12-110 mm
• Production output: Blisters – up to 350 blisters/min (2 rows configuration) or up to 525 blisters/min (3 rows configuration). Cartons – C40-A83: up to 160 cartons/min; C40-A86/A110/Dynamica: up to 350 cartons/min.
