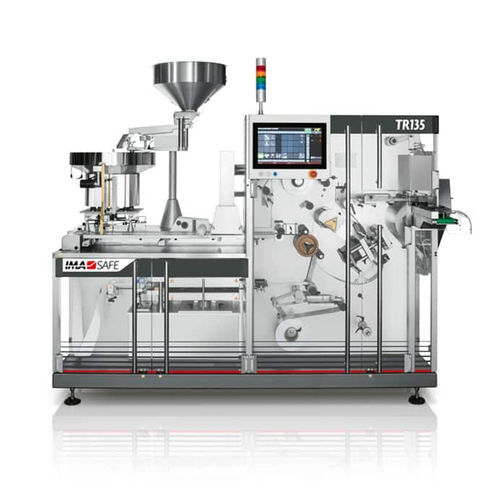

Modular thermoformer TR Series

for pharmaceuticals packagingfor medical packagingcompact

Overview
The TR Series is a compact blister packaging machine designed for reliable forming and sealing of pharmaceutical and healthcare products. Available in two configurations—TR135 and TR200—the series optimizes production in constrained spaces while enabling fast format changeovers, precise forming and easy cleaning to meet GMP requirements. IMA technology ensures repeatable cavity forming and controlled sealing parameters, reducing downtime and maintaining product quality.

Highlights

• Compact and ergonomic design: reduced footprint for installation in limited spaces and an operator-focused layout to facilitate loading and maintenance.
• Quick format changeover: intuitive, fast changeover system suited to diversified production and small batches, significantly reducing setup times.
• IMA precision and reliability: proven forming and sealing technology with continuous control of process parameters.
• Production flexibility: two versions—TR135 for small-scale production and TR200 for higher throughput—allow adaptation to different capacities.
• Easy cleaning and GMP compliance: accessible components for fast, safe cleaning and maintenance in line with pharmaceutical GMP standards.

Machine versions

• TR135 — compact version optimized for operational simplicity; up to 230 blisters/min (depending on configuration).
• TR200 — higher-output version while maintaining compact footprint; up to 350 blisters/min (depending on configuration).

Media
Includes machine images and a video illustrating forming, sealing, feeding, perforation, cutting and coding units.

Specifications / Technical data

• Series: TR Series (TR135 and TR200).
• Blister dimensions (Width x Length x Depth):
  TR135: Width 30-88 mm | Length 60-135 mm | Depth 3-12 mm
  TR200: Width 30-88 mm | Length 60-210 mm | Depth 3-12 mm
• Production output (blisters/min): TR135 up to 230 blisters/min*; TR200 up to 350 blisters/min*.
• Key features: compact footprint, ergonomic layout, quick format changeover, easy cleaning (GMP compliance), precision forming and sealing, production flexibility.
• Plant/brand: IMA Safe (production plant specified on the page).
• Notes: multiple configurations available on request.
