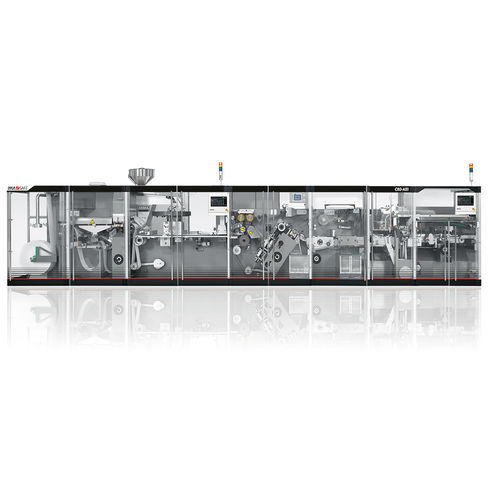

Automatic thermoformer C80 Series

in-linefor pharmaceuticals packaginghigh-speed

Overview
The C80 Series blister packaging machines provide flexible thermoformed blister packaging for medium-size production batches. Available as C80-A81 (with integrated positive-transfer cartoner interface) and C80R (stand-alone), the series supports double-lane and three-lane layouts and processes common and demanding forming materials such as PP and Aclar. The line is optimized for high-speed handling of wide blisters, including Alu-Alu applications.

Key features

• Double-lane and three-lane configurations
• High-speed performance for wide blister formats
• Compatible with common and difficult thermoforming materials (PP, Aclar)
• C80-A81: integrated positive transport to cartoner
• C80R: stand-alone layout with maximum installation flexibility
• Fast, computer-guided changeover
• Full accessibility to material workflow for maintenance and cleaning
• Ergonomic reel holder for easier forming material loading
• Automatic blister recovery magazine to prevent missing-blister rejects in cartoners

Machine highlights (from page content)

• Wide range of blister format sizes
• Maximum layout flexibility for line integration
• Fast, computer-assisted format changeover
• User-oriented design for straightforward operation
• Complete access to forming and transfer stations
• Improved ergonomics at the forming reel holder
• Automatic blister recovery magazine: prevents ZERO-rejections in the cartoner due to missing blisters

Special applications
The C80 double-lane configuration is qualified for packaging hormone products. Multiple feeding systems permit combining different products within the same blister run.

Good to know: Track & Trace
An integrated cartoner module supports camera inspection and ink-jet marking for cartoning serialization, reducing line footprint while enabling efficient serialization workflows.

Media & functions observed on product page

• Product video trailer
• Gallery images: forming reel holder, pre-heating and forming stations, feeding area, coding and perforation units, cutting area, blister transfer and carton magazine

Technical data
C80 TECHNICAL DATA

Blister dimensions
Width: 30-90 mm
Length: 60-150 mm
Depth/Height: 3-12 mm

Carton dimensions
Width: 35-93 mm
Length: 70-155 mm
Depth/Height: 12-90 mm

Production output
Model C80R (stand-alone): Blisters up to 400 blisters/min. / up to 600 blisters/min. depending on configuration
Model C80-A81: Blisters up to 400 blisters/min.; Cartons up to 250 cartons/min.

Notes
The series comprises C80-A81 (integrated blister-to-carton transfer with positive transport) and C80R (stand-alone, from double-lane to three-lane, with higher blister-speed options). C80-A81 is optimized for medium batch sizes where blister-to-carton integration is required.
