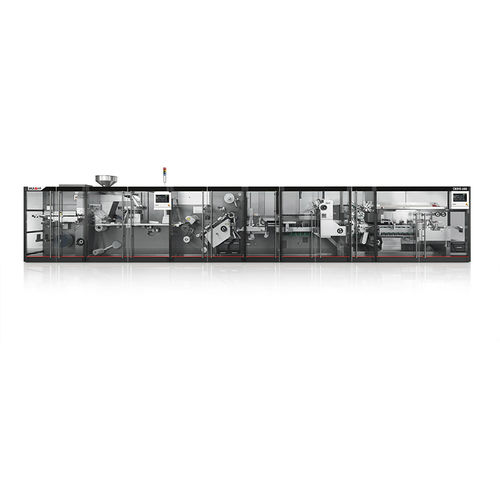

Automatic thermoformer C80HS Series

modularhigh-speed

Machine overview
C80HS is a modular high-speed double-lane blister packaging machine engineered for integration with multiple cartoners (cartoning speed up to 500 cartons/min). The design prioritizes full visibility of blisters throughout the process and unrestricted operator access to simplify setup, cleaning and maintenance. Mechanical layout and functional components are optimized for high throughput, low rejection and reliable downstream transfer via an automatic blister recovery magazine.

Highlights

• Total accessibility: full access at the connection area between the blister machine and the cartoner for quick interventions.
• Flexible modularity: configurable integration with different cartoning systems to fit line layouts.
• Innovative cutting unit: detects and rejects blisters with incorrect shapes.
• Positive blister transfer: ensures secure transfer irrespective of blister geometry.
• Automatic blister recovery: recovery magazine minimizes missing-blister rejects in the cartoner.
• Ergonomic material loading: reel-holder positioned for easy forming-material loading.
• Quick size changeover: fast, tool-less format changeover minimizes downtime.

Good to know: Track & Trace
The machine supports an integrated Track & Trace module on the cartoner (camera + ink-jet) for serialization, enabling a more compact line footprint and improved line efficiency.

Technical data (table)
Blister dimensions | Carton dimensions
Width: 30–90 mm | Width: 35–95 mm
Length: 60–145 mm | Length: 70–150 mm
Depth / height: 3–12 mm | Depth / height: 15–90 (105) mm

Production output (by model)
Models: C80HSA, C80HS-A76, C80HS-A86, C80HS-A96
Blisters: up to 750 blisters/min.
Cartons: C80HS-A76 up to 250 cartons/min; C80HS-A86 up to 350 cartons/min; C80HS-A96 up to 500 cartons/min.

Technical specifications

• Series: C80HS Series
• Machine type: Modular high-speed double-lane blister packaging machine
• Integration: Compatible with various cartoning systems (modular)
• Max blister speed: up to 750 blisters/min
• Carton throughput (by model): up to 250 / 350 / 500 cartons/min (A76 / A86 / A96)
• Blister width range: 30–90 mm
• Blister length range: 60–145 mm
• Blister depth/height: 3–12 mm
• Carton width range: 35–95 mm
• Carton length range: 70–150 mm
• Carton depth/height: 15–90 (105) mm
• Key features: innovative cutting unit, positive blister transfer, automatic blister recovery magazine, ergonomic reel holder, full accessibility at connection area, quick size changeover
• Optional: integrated Track & Trace module (camera + ink-jet) for serialization
