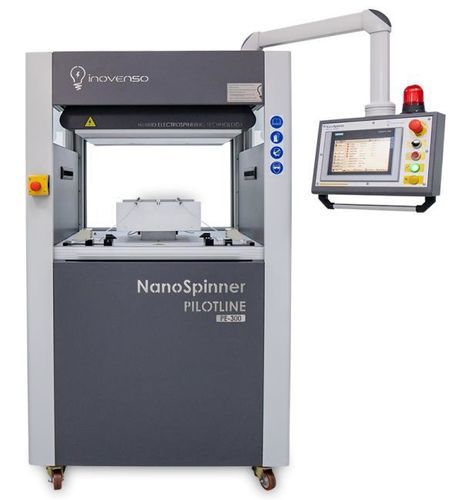

Nanofiber electrospinning machine PE-300

sprayingprogrammablewith touch screen

Brief description
The PE-300 pilot production electrospinning/spraying machine is designed for continuous manufacturing and R&D of nanofibrous membranes. It supports single- and multi-component fiber production and, with an optional co-axial system, enables core–shell, hollow and bi-component fibers. The unit is intended for integration on production lines as well as laboratory-scale process development.

Applications

• Medicine
• Biomedical research
• Energy
• Filtration
• Textiles
• Agriculture
• Cosmetics
• Food industry
• Defence
• Tissue engineering

Unique Properties
The PE-300 features 18 simultaneous feeding nozzles for high-throughput production and can operate with a single nozzle for R&D flexibility. It employs a hybrid electrospinning method combining needle-based and needle-less approaches. The system accepts 2 programmable syringe pumps and 2 independent high-voltage power supplies to run two different polymers simultaneously with independent voltage and flow control, offering significantly increased productivity compared with needle-only systems.

Technical features

• Hybrid electrospinning with multiple jets per nozzle
• Bottom-up spinning configuration
• 18 simultaneous feeding nozzles (single-nozzle mode available)
• Nanofibre coating width: 300 mm
• Programmable touch-screen control panel
• Continuous roll-to-roll substrate winding collector
• Adjustable horizontal movement: 10–80 mm range, 5–50 mm/s speed
• Automatic nozzle-to-collector distance adjustment: 30–230 mm
• Production capacity: approx. 0.01–5 g/m² (nanofibre membrane)
• Supports 2 programmable syringe pumps and 2 high-voltage power supplies
• Simultaneous processing of two polymers at different voltages and flow rates

Technical specifications

• Model: PE-300 pilot production electrospinning/spraying machine
• Electrospinning technology: hybrid (needle-based + needle-less)
• Nozzles: 18 simultaneous feeding nozzles (option to operate with 1 nozzle)
• Coating width: 300 mm
• Nozzle-to-collector distance: adjustable, 30–230 mm
• Horizontal movement range: adjustable, 10–80 mm
• Horizontal movement speed: 5–50 mm/s
• Production capacity: ~0.01–5 g/m²
• Pumps & power supplies: supports 2 programmable syringe pumps and 2 high-voltage power supplies
• Product types: single/multi-component nanofibers; optional co-axial for core–shell, hollow and bi-component fibers
• Control: programmable touch-screen panel; continuous roll-to-roll collector system
