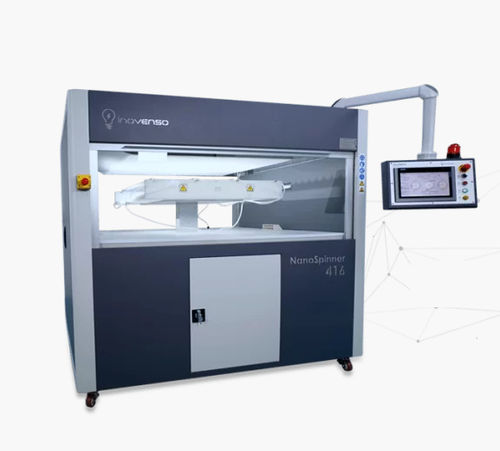

Nanofiber electrospinning machine Nanospinner 416sprayingprogrammablewith touch screen
Add to favorites
Compare this product
Characteristics
- Applications
- nanofiber
- Other characteristics
- multi-nozzle, programmable, spraying, with touch screen
Description
Brief Description
Key properties
Optional accessories
Applications
Multimedia
Technical specifications
- NANOSPINNER416 is an industrial electrospinning line for continuous production of nanofiber membranes, designed to coat substrates up to 1 m wide with 50–400 nm diameter nanofibers.
- Production output depends on coating weight: approximately 180 m²/day to 5,000 m²/day; net nanofiber yield about 5,000 g/day.
- Standard configuration includes 110 electrospinning needles (expandable to 204), two precise peristaltic pumps, a programmable touch-screen control panel and integrated environmental control for stable operation.
Key properties
- Operation mode: bottom-up electrospinning
- Coating width: 1000 mm
- Nanofiber diameter range: 50–400 nm
- Needle count: 110 standard (configurable up to 204)
- Substrate speed: 0.2–20 m/min
- Control: programmable touch-screen
- Pumps: two peristaltic pumps (standard)
Optional accessories
- Temperature-controlled chamber (heating up to 40°C)
- Dehumidifier chamber (ambient humidity adjustable to ~25%)
- Integrated camera for process visualization
- Bicomponent coaxial nozzle system for core–shell, hollow and bicomponent fibers (includes extra syringe pump)
Applications
- Industrial-scale nanofiber membrane manufacturing
- Filtration media, medical textiles, composites, sensors and coating processes requiring uniform nanofiber layers
Multimedia
- Promotional and demonstration video available showing NANOSPINNER416 operation.
Technical specifications
- Model: NANOSPINNER416
- Coating width: 1000 mm
- Nanofiber diameter: 50–400 nm (0.05–0.4 μm)
- Net nanofiber production: ~5,000 g/day
- Membrane coating output: 180–5,000 m²/day (depending on coating weight)
- Needles: 110 standard (expandable to 204)
- Substrate speed: 0.2–20 m/min
- Pumps: 2 peristaltic pumps
- Control: programmable touch-screen; advanced automation
- Environmental: integrated air conditioning; optional temperature-controlled and dehumidifier chambers
- Optional: camera integration; coaxial/bicomponent nozzle system
- Intended use: continuous industrial nanofiber membrane production by electrospinning
