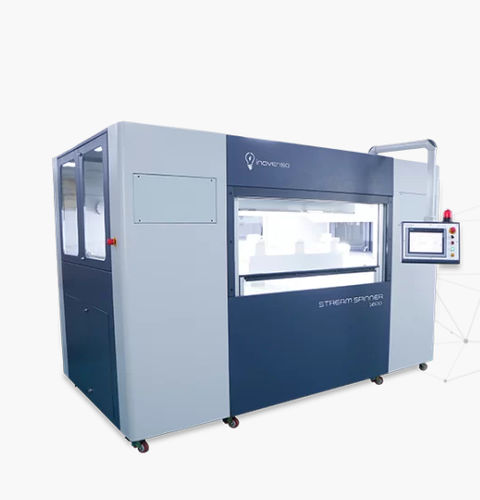

Nanofiber electrospinning machine StreamSpinner1600

sprayingwith touch screen

Brief Description
StreamSpinner1600 is an open surface industrial electrospinning and spraying line designed for commercial production of nanofibers and nanofiber-based products on a 1600 mm width roll-to-roll collector. The machine delivers substantially higher throughput than conventional systems and is engineered for continuous, automated operation with built-in anomaly detection.

Key Operational Features
The Smart Dynamic Feeding System enables highly homogeneous nanofiber production and precise flow-rate control across a wide viscosity range of polymer solutions. Integrated software-controlled winding allows setting and maintaining target thickness through automatic adjustment of flow rate and winding speed.

Unique Properties

• High production rate: approximately 60% higher throughput than StreamSpinner1000 (SS1000)
• Maximum reported output: up to 36 m2/min (measured for PA6 at 0.1 GSM)
• Smart Dynamic Feeding System for uniform fibre formation and accurate flow adjustment
• Smart Winding System that synchronizes flow rate and winding speed to achieve desired layer thickness
• Compatibility with a wide viscosity range of polymeric materials
• Patent Pending Technology

Application Areas

• Filtration
• Cosmetics
• Biomedical and pharmaceutical manufacturing
• Energy (e.g., battery separators)
• Other industrial and specialty applications

Technical specifications

• Model name: StreamSpinner1600
• Machine type: open surface industrial electrospinning / spraying line
• Collector type & width: roll-to-roll collector, 1600 mm width
• Maximum reported production rate: up to 36 m2/min (PA6, 0.1 GSM)
• Throughput: approximately 60% higher than StreamSpinner1000 (SS1000)
• Feeding system: Smart Dynamic Feeding System for homogeneous production and precise flow control
• Winding control: Smart Winding System that automatically adjusts flow rate and winding speed to set desired thickness
• Material compatibility: wide viscosity range of polymeric materials
• Automation: designed for operation without continuous operator supervision; includes anomaly detection capabilities
• Intellectual property: patent pending technology
