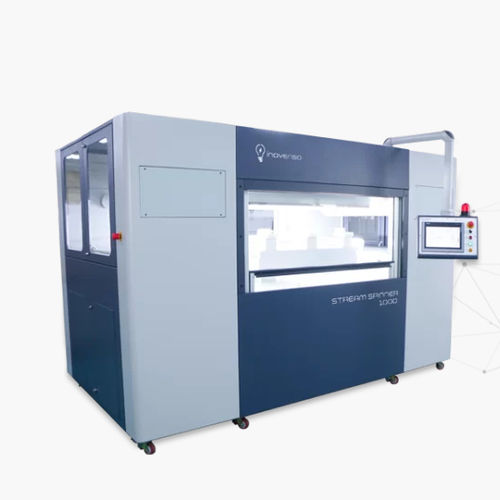

Nanofiber electrospinning machine StreamSpinner1000

sprayingwith touch screen

Brief Description
StreamSpinner1000 is an open-surface industrial electrospinning and spraying line designed for commercial manufacturing of nanofibers and nanofiber-based products on a 1000 mm roll-to-roll collector. The system delivers 5–15× the throughput of conventional electrospinning equipment and supports continuous unattended operation through automated feeding and control. The Smart Dynamic Feeding System ensures homogeneous nanofiber formation and precise flow-rate adjustment. The line accepts a wide viscosity range of polymeric solutions and is suited for large-scale production of filtration media, biomedical substrates and other functional membranes.

Unique Properties

• High production rate: 5–15× higher than conventional electrospinning systems.
• High line speed: up to 51 m/min (measured for PA6 at 0.03 GSM).
• Smart Dynamic Feeding System: homogeneous production and precise flow adjustment.
• Smart Winding System: automated thickness control via flow and winding-speed coordination.
• Material compatibility: operates with a wide viscosity range of polymeric solutions.
• Patent status: Patent Pending technology.

Standard Polymers / Production Data

• TPU — Total flow rate 1200 ml/h — production ≈ 5.3 m/min (for 0.5 GSM)
• PVDF — 660 ml/h — ≈ 3.9 m/min
• PA6 — 600 ml/h — ≈ 3.1 m/min
• HA — 360 ml/h — ≈ 1.1 m/min
• PAN — 570 ml/h — ≈ 1.6 m/min
• PHB — 4800 ml/h — ≈ 6.2 m/min

Application Areas

• Filtration
• Cosmetics
• Biomedical & Pharmaceutical
• Energy
• Other industrial applications

Technical Specifications

• Product type: Open surface industrial electrospinning/spraying line
• Model: StreamSpinner1000
• Collector width: 1000 mm roll-to-roll collector
• Production throughput: 5–15× conventional systems
• Example maximum line speed: up to 51 m/min (PA6 at 0.03 GSM)
• Smart Dynamic Feeding System for homogeneous production and precise flow control
• Smart Winding System: automated thickness control via flow and winding-speed adjustments
• Compatibility: wide viscosity range of polymeric solutions
• Patent status: Patent Pending
• Standard polymers and corresponding total flow/production rates provided above
• Product page includes an embedded product video demonstrating manufacturing and applications (YouTube)
