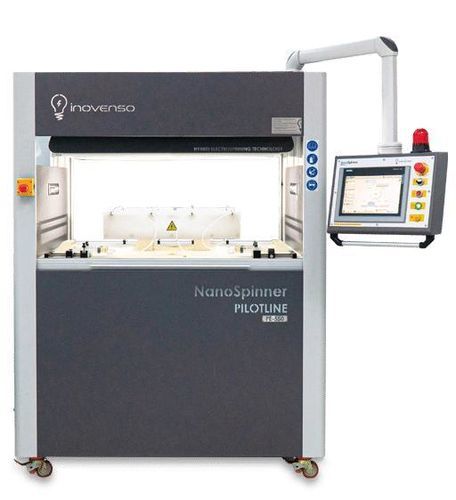

Nanofiber electrospinning machine PE-550

for researchsprayingprogrammable

Brief Description
PE-550 is Inovenso's best-selling electrospinning machine for continuous industrial-scale production of nanofibers. It offers high scalability for production lines and R&D, supporting operation with 56 nozzles for high productivity while also being able to operate with a single nozzle for research and development. The system is designed for production of nanofibers and composite materials and can run multiple polymers independently thanks to its multi-pump and multi-power-supply architecture.

Key Capabilities

• Continuous production suitable for industrial manufacturing and R&D
• Operates with up to 56 nozzles for high throughput and can run single-nozzle setups for lab-scale trials
• Produces nanofibers and composite membranes
• Supports simultaneous processing of multiple polymers

Hybrid Electrospinning Technology (advantages)

• From needleless electrospinning: High throughput
• From needle-based electrospinning: Precise control over process and final product

Applications

• Face masks
• Battery separators
• Air and liquid filters
• Wound dressings
• Other commercial nanofiber products

Unique Features

• Hybrid Electrospinning Technology (multiple jets from each nozzle)
• Bottom-Up Electrospinning design
• Feeding capacity for 56 nozzles simultaneously
• 550 mm-wide nanofiber coating capability
• Programmable touchscreen control panel
• Continuous roll-to-roll collector system
• Horizontal movement range 20–80 mm with adjustable speed 5–50 mm/s
• Automatic adjustment of distance between nozzle and collector (30–230 mm)
• Capability to produce nanofiber membranes with basis weights 0.01–5 g/m²
• 4 programmable syringe pumps and 4 high-voltage power supplies
• Possibility to work with 4 different polymers simultaneously, each with independent voltage and flow rate

Technical specifications

• Model: PE-550
• Nozzles (maximum feeding capacity): 56
• Nanofiber coating width: 550 mm
• Horizontal movement range: 20–80 mm
• Adjustable horizontal speed: 5–50 mm/s
• Nozzle-to-collector automatic distance adjustment range: 30–230 mm
• Membrane basis weight (thickness) capability: 0.01–5 g/m²
• Syringe pumps: 4 programmable pumps
• High-voltage power supplies: 4 independent units
• Simultaneous polymers supported: up to 4, each with independent voltage and flow control
• Control interface: Programmable touchscreen
• Collector type: Continuous roll-to-roll collector
