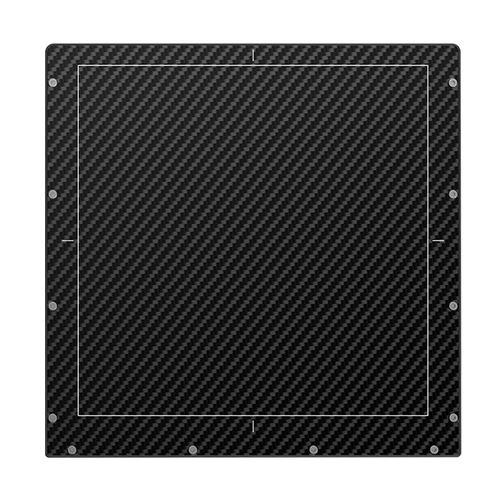

Panoramic radiography flat panel detector Jupi 0606X1

for CBCT imaging6 x 6

Jupi 0606X1 is new generation, high-performance FPD developed with innovative TFT sensor technology for real-time imaging. The 6×6-inch low noise TFT image sensor has direct deposition CsI, which together with 16 bit read-out electronics and programmable ROIs, provides excellent low-dose imaging at frame rates up to 60 fps. With its outstanding image quality and reliability, it is an excellent choice for extra-oral CBCT and panoramic imaging. Features Innovative TFT image sensor provides low noise, high SNR with an extended dynamic range 100 μm pixel pitch Real-time imaging in full resolution at 20 fps and 2×2 at 60 fps Pano imaging at 220 fps Supports programmable ROI read-out Switchable gain settings for variable sensitivity Narrow shoulder edge distance of 10 mm Gigabit Ethernet interface Designed for medium FoV dental CBCT imaging Detector Technology Oxide TFT Scintillator Csl Pixel Pitch (pm) 100 Pixel Matrix 1536x1536 Active Area (mm2) 154x154 AD Conversion (bit) 16 Frame Rate (fps) 20(1x1) 30 (2x1) 60 (2x2) >220 (panoramic) Data Interface GigE Trigger Mode Continuous or Pulsed Spatial Resolution (Ip/mm) 5 Dimension (mm) 187x184x52 Weight (kg) 2.5 DC Power Input 24V Default Power Dissipation (W) 10 Operating Temperature (°C) 10-40 Storage & Transport Temperature with Package (°C) -10-55 Operating Humidity (% RH) 20-90 (Non-Condensing) Storage & Transport Humidity with Package (% RH) 10-95 (Non-Condensing)
