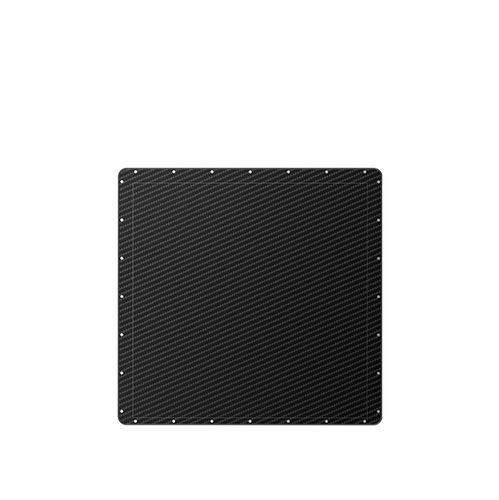

Fluoroscopy flat panel detector Mercu 1212X

portablewireless12 x 12

Product overview
Mercu 1212X is an a-Si dynamic flat panel detector engineered for real-time fluoroscopic imaging. The 12×12-inch sensor incorporates a direct-deposition CsI scintillator to enhance low-dose sensitivity and image quality. It is designed for integration into fixed or mobile C-arm X-ray systems and is suitable for surgical and interventional imaging applications.

Features

• a‑Si sensor with direct-deposition CsI scintillator
• Distortion-free imaging with high signal-to-noise ratio (SNR)
• Switchable gain settings for adjustable sensitivity
• 45 fps at full resolution; up to 90 fps in 2×2 readout mode
• 150 μm pixel pitch

Technical specifications

• Detector type: a‑Si dynamic flat panel detector (FPD)
• Scintillator: direct-deposition CsI
• Active area / nominal size: 12 × 12 inch image sensor
• Intended use: real-time fluoroscopic imaging; compatible with fixed and mobile C-arm systems for surgical/interventional procedures
• Frame rate: up to 45 fps at full resolution; up to 90 fps in 2×2 readout mode
• Pixel pitch: 150 μm
• Gain: switchable gain settings for variable sensitivity
• Image characteristics: high SNR, distortion-free imaging optimized for low-dose operation
